TLP170AM(TPL,E
lmages are for reference only.TLP170AM(TPL,E
SSR RELAY SPST-NO 700MA 0-60V
Datasheet6-SOP (0.179", 4.55mm), 4 Leads
90,565 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Solid State SPST-NO (1 Form A) 6-SOP (0.179", 4.55mm), 4 Leads
TLP170AM(TPL,E
| Category | Relays - Solid State Relays SSR - |
| Manufacturer | Toshiba Semiconductor and Storage |
| Series | TLP170AM |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Surface Mount |
| Circuit | SPST-NO (1 Form A) |
| Output Type | AC, DC |
| Voltage - Input | 1.27VDC |
| Voltage - Load | 0 V ~ 60 V |
| Load Current | 700 mA |
| Termination Style | Gull Wing |
| Operating Temperature | -55°C ~ 125°C |
| Package / Case | 6-SOP (0.179", 4.55mm), 4 Leads |
| Supplier Device Package | 6-SOP (2.54mm) |
| Approval Agency | cUL, UL, VDE |
| Grade | - |
| Qualification | - |
| Base Product Number | TLP170 |
| On-State Resistance (Max) | 300 mOhms |
| Product Attribute |  |
 |
.jpg "TLP170A(F)") |
.jpg "TLP170A(TP,F)") |

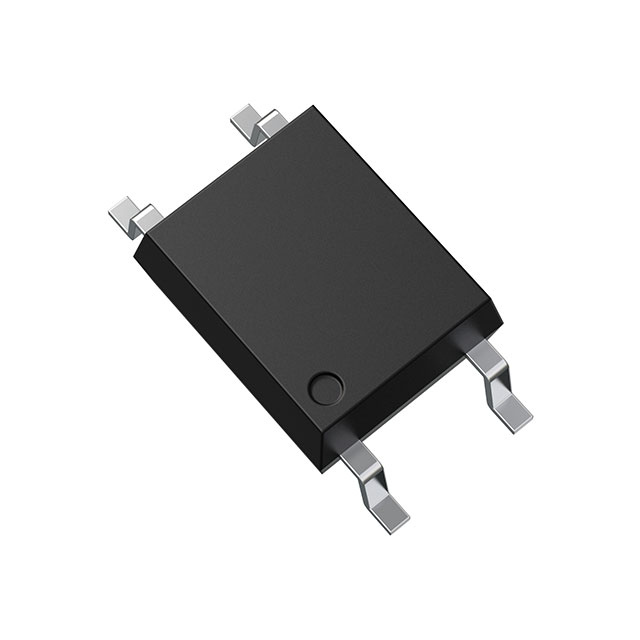

| Part Number | TLP170AM(E | TLP170AM(V4TPL,E | TLP170A(F) | TLP170A(TP,F) |
| Manufacturer | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage | Toshiba Semiconductor and Storage |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SSR RELAY SPST-NO 400MA 0-60V | SSR RELAY SPST-NO 700MA 0-60V | SSR RELAY SPST-NO 400MA 0-60V | SSR RELAY SPST-NO 400MA 0-60V |
| Series | TLP170AM | TLP170AM | TLP170A | TLP170A |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tape & Reel (TR) |
Recommended Products

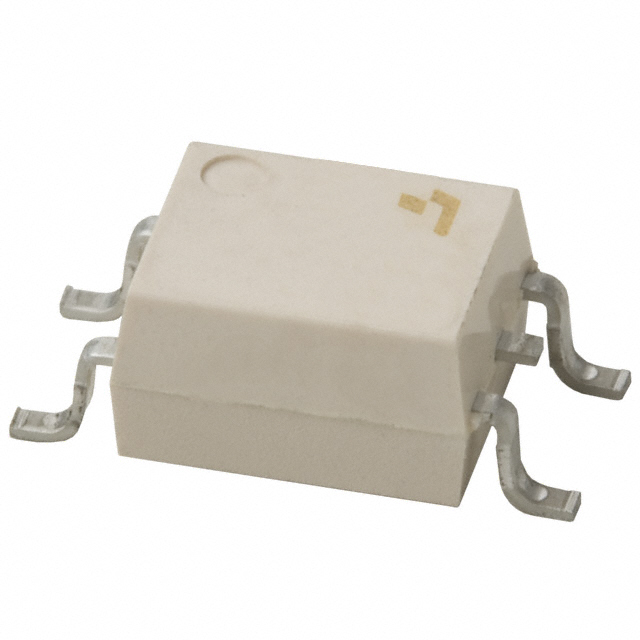

.jpg "TLP170D(F)")
