TPCC-R-1.125A
lmages are for reference only.Payment Methods
Delivery Services
1.125 A 600 V AC 300 V DC Fuse Cartridge, Ceramic Requires Holder 5AG, 10mm x 38mm (Midget)
TPCC-R-1.125A
| Category | Circuit Protection - Fuses - |
| Manufacturer | OptiFuse |
| Series | TPCC-R |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 1.125 A |
| Voltage Rating - AC | 600 V |
| Voltage Rating - DC | 300 V |
| Response Time | Slow Blow |
| Package / Case | 5AG, 10mm x 38mm (Midget) |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Melting I²t | - |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Color | - |
| Size / Dimension | 0.409" Dia x 1.500" L (10.40mm x 38.10mm) |
| Base Product Number | TPCC-R |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

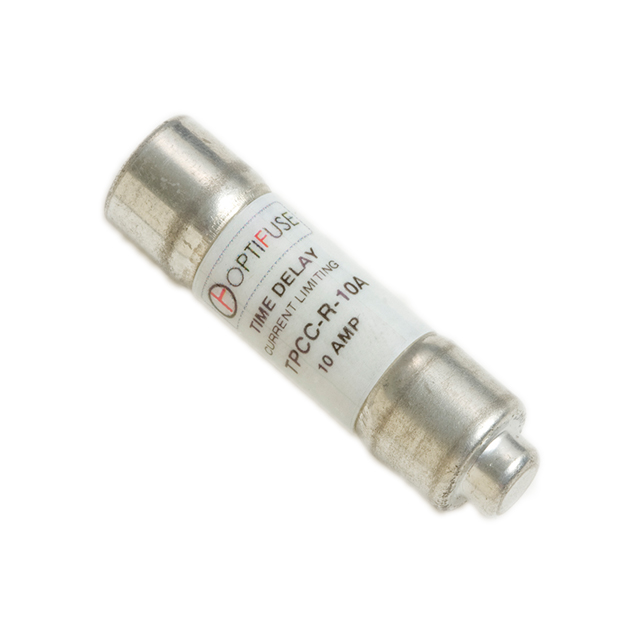

| Part Number | TPCC-R-1A | TPCC-R-20A | TPCC-R-2A | TPCC-R-30A |
| Manufacturer | OptiFuse | OptiFuse | OptiFuse | OptiFuse |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | UL CLASS CC FUSE, TIME DELAY 1A | FUSE CERM 20A 600VAC 300VDC 5AG | FUSE CERM 2A 600VAC 300VDC 5AG | FUSE CERM 30A 600VAC 300VDC 5AG |
| Series | OptiFuse | OptiFuse | OptiFuse | OptiFuse |
| Packaging | Bulk | Bulk | Bulk | Bulk |
