Product CatalogPart Number
TPL720F30-89TR
Manufacturer
3PEAKDescription
LOW QUIESCENT CURRENT LINEAR REG
Datasheet
DatasheetPackage
TO-243AA
In Stock
70,829 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
TPL720F30-89TR
TPL720F30-89TR

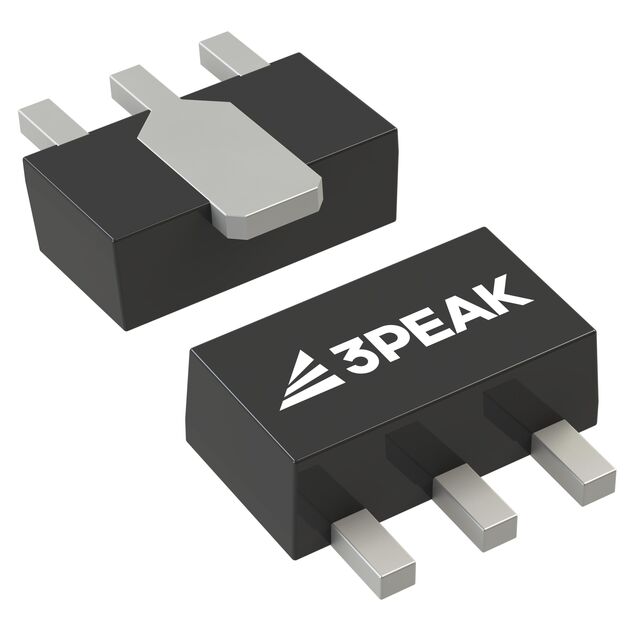

lmages are for reference only.Payment Methods
Delivery Services
Linear Voltage Regulator IC Positive Fixed 1 Output 400mA SOT-89-3
Quick Inquiry
TPL720F30-89TR
Specifications
| Category | Integrated Circuits (ICs) - Power Management PMIC - Voltage Regulators Linear-Low Drop Out LDO Regulators |
| Manufacturer | 3PEAK |
| Series | TPL720 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Output Configuration | Positive |
| Output Type | Fixed |
| Number of Regulators | 1 |
| Voltage - Input (Max) | 6V |
| Voltage - Output (Min/Fixed) | 3V |
| Voltage - Output (Max) | - |
| Voltage Dropout (Max) | 0.35V @ 400mA |
| Current - Output | 400mA |
| Current - Quiescent (Iq) | - |
| PSRR | 55dB ~ 53dB (100Hz ~ 1MHz) |
| Control Features | Current Limit |
| Protection Features | Over Current, Over Temperature, Under Voltage Lockout (UVLO) |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Grade | - |
| Qualification | - |
| Mounting Type | Surface Mount |
| Package / Case | TO-243AA |
| Supplier Device Package | SOT-89-3 |
| Base Product Number | - |
| Current - Supply (Max) | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

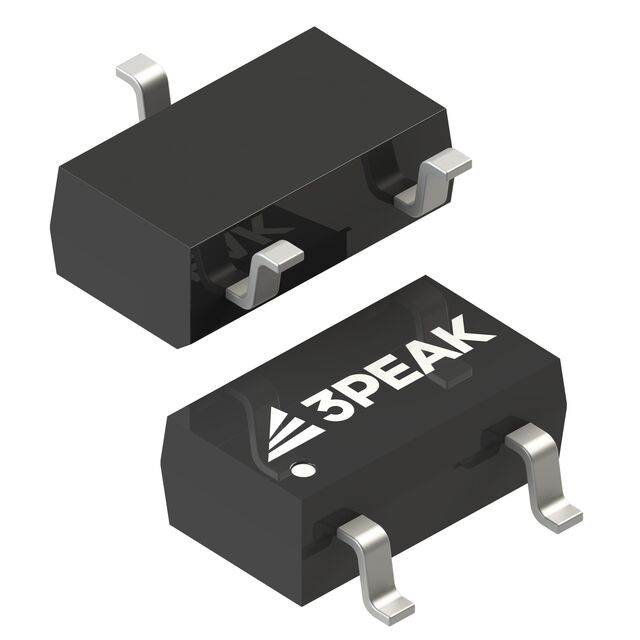

| Part Number | TPL720F30-3TR | TPL720F30-5TR | TPL720F33-3TR | TPL720F33-5TR |
| Manufacturer | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LOW QUIESCENT CURRENT LINEAR REG | LOW QUIESCENT CURRENT LINEAR REG | LOW QUIESCENT CURRENT LINEAR REG | LOW QUIESCENT CURRENT LINEAR REG |
| Series | 3PEAK | 3PEAK | 3PEAK | 3PEAK |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
