TPS2505B1RGWR
lmages are for reference only.TPS2505B1RGWR
IC PWR SWITCH N/P-CH 1:3 20VQFN
Datasheet20-VQFN Exposed Pad
65,992 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Power Switch/Driver 1:3 N/P-Channel 1.1A 20-VQFN (5x5)
TPS2505B1RGWR
| Category | Integrated Circuits (ICs) - Power Management PMIC - Power Distribution Switches-Load Drivers |
| Manufacturer | Texas Instruments |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Switch Type | USB Switch |
| Number of Outputs | 3 |
| Ratio - Input:Output | 1:3 |
| Output Configuration | High Side or Low Side |
| Output Type | N/P-Channel |
| Interface | Logic |
| Voltage - Load | 1.8V ~ 5.25V |
| Voltage - Supply (Vcc/Vdd) | Not Required |
| Current - Output (Max) | 1.1A |
| Rds On (Typ) | 80mOhm (Max) |
| Input Type | Non-Inverting |
| Features | Boost Converter, Status Flag |
| Fault Protection | Current Limiting (Adjustable), Over Temperature, UVLO |
| Operating Temperature | -40°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | 20-VQFN (5x5) |
| Package / Case | 20-VQFN Exposed Pad |
| Base Product Number | TPS2505 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

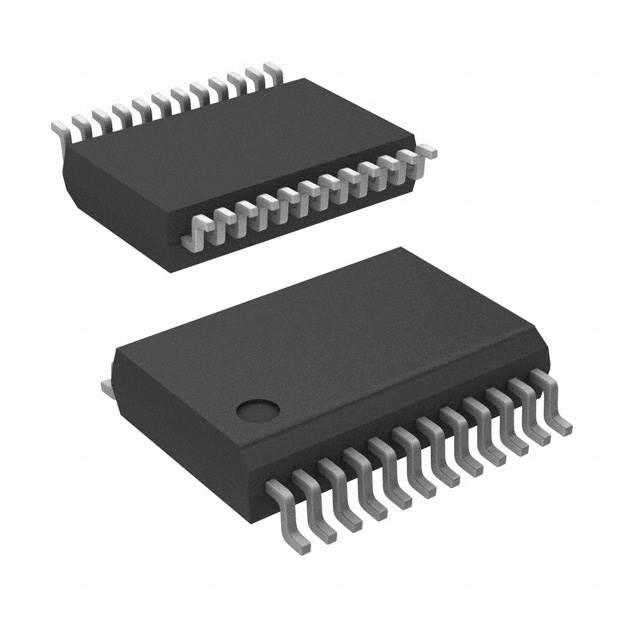

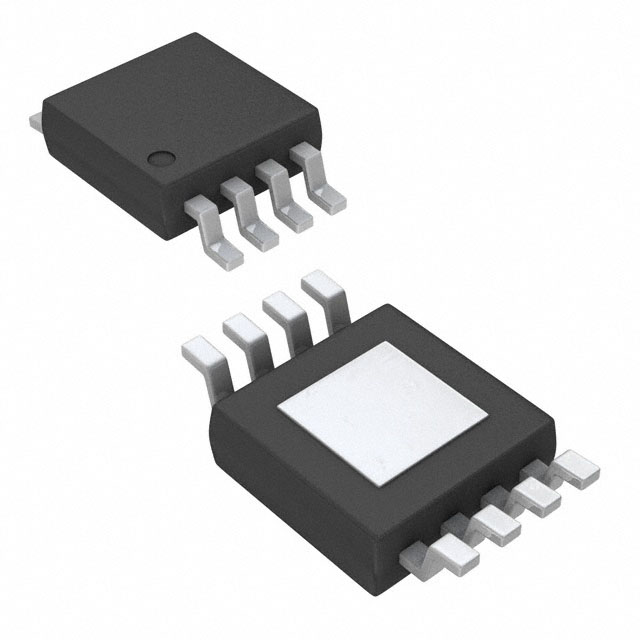

| Part Number | TPS2211IDBR | TPS2075DB | TPS2068DGN | TPS2042AD |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC PWR SWITCH 3:2 16SSOP | IC PWR SWITCH N-CHAN 1:4 24SSOP | IC PWR SWITCH N-CHAN 1:1 8MSOP | IC PWR SWITCH N-CHAN 1:2 8SOIC |
| Series | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tube | Tube | Tube |
