TR90RID

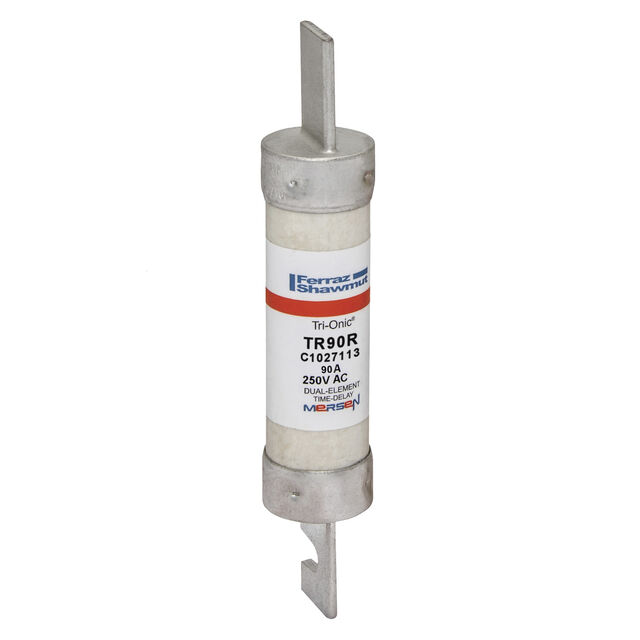

lmages are for reference only.TR90RID
250V 90A TD RK5 FUSE SMARTSPOT
DatasheetCylindrical, Blade Terminals
36,931 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
90A 250 VAC 250 VDC Fuse Cartridge Requires Holder
TR90RID
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TR-R |
| Packaging | Box |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 90A |
| Voltage Rating - AC | 250 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 20kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 1.063" Dia x 5.866" L (27.00mm x 149.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 250 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TR90R | TCF20RNW | TPB-1600-E | TR35RID |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Eaton - Bussmann Electrical Division | Eaton - Bussmann Electrical Division | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | |
| Description | 250V 90A 5 7/8X1 1/16 RK5 | CUBEFUSE, TCFRNW 20A NON-IND | TELECOM FUSE 1600AMP | 250V 35A TD RK5 FUSE SMARTSPOT |
| Series | TR-R | - | * | TR-R |
| Packaging | Box | Bulk | Bulk | Box |
