TRS70R
lmages are for reference only.TRS70R
600V 70A 7 7/8X1 5/16 TD
DatasheetCylindrical, Blade Terminals
96,034 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
70A 600 VAC 600 VDC Fuse Cartridge Requires Holder
TRS70R
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TRS-R |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 70A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | - |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 1.339" Dia x 7.874" L (34.00mm x 200.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |

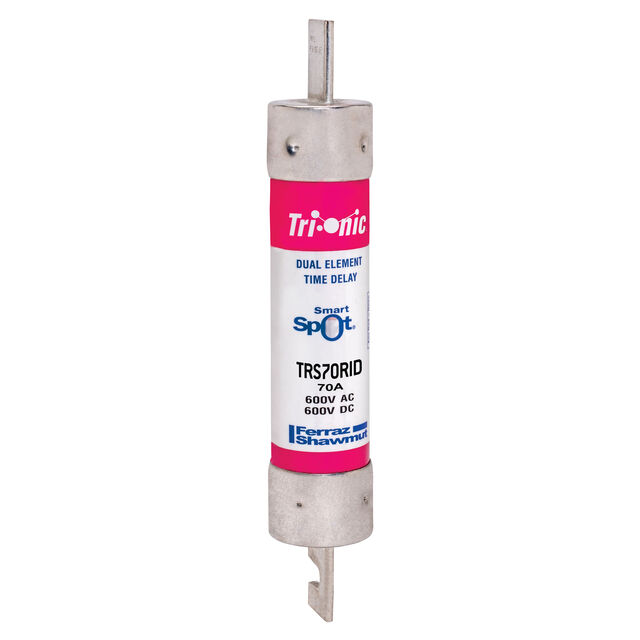

| Part Number | TRS70RID | TRS1-1/4R | TRS1-6/10R | TRS100R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. | Mersen USA Newburyport-MA L.L.C. |
| RoHS Status | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | 600V 70A TD RK5 FUSE SMARTSPOT | 600V 1 1/4A 5X13/16 TD FUSE | 600V 1 6/10A 5X13/16 TD FUSE | 600V 100A 7 7/8X1 5/16 TD |
| Series | TRS-R | TRS-R | TRS-R | TRS-R |
| Packaging | Box | Box | Box | Box |
