TRS70RID

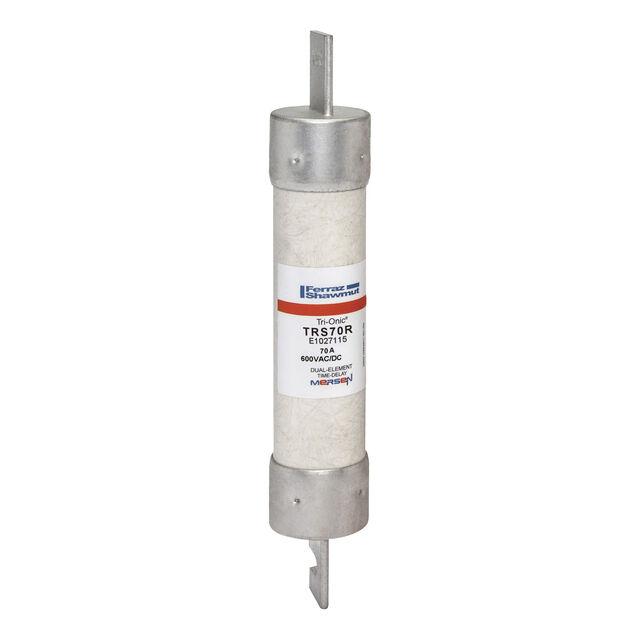

lmages are for reference only.TRS70RID
600V 70A TD RK5 FUSE SMARTSPOT
DatasheetCylindrical, Blade Terminals
97,922 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
70A 600 VAC 600 VDC Fuse Cartridge Requires Holder
TRS70RID
| Category | Circuit Protection - Electrical-Specialty Fuses - |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. |
| Series | TRS-R |
| Packaging | Box |
| RoHS Status | RoHS non-compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge |
| Current Rating (Amps) | 70A |
| Voltage Rating - AC | 600 VAC |
| Response Time | Slow Blow |
| Applications | Electrical, Industrial |
| Features | Indicating |
| Class | RK5 |
| Approval Agency | CSA, UL |
| Operating Temperature | - |
| Breaking Capacity @ Rated Voltage | 200kA AC, 100kA DC |
| Package / Case | Cylindrical, Blade Terminals |
| Size / Dimension | 1.339" Dia x 7.874" L (34.00mm x 200.00mm) |
| Base Product Number | - |
| Voltage Rating - DC | 600 VDC |
| Grade | - |
| Qualification | - |
| Melting I²t | - |
| DC Cold Resistance | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | TRS70R | TR-1245UMFT1-25-R | TR-1245UMFT1-6-R | TR-1245UMFT1-R |
| Manufacturer | Mersen USA Newburyport-MA L.L.C. | Eaton - Electronics Division | Eaton - Electronics Division | Eaton - Electronics Division |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 600V 70A 7 7/8X1 5/16 TD | FUSE T-DELAY 250V 1245 1.25A | FUSE T-DELAY 250V 1245 1.6A | FUSE T-DELAY 250V 1245 1A |
| Series | TRS-R | 1245UMFT | 1245UMFT | 1245UMFT |
| Packaging | Box | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
