TSAL5100
lmages are for reference only.TSAL5100
EMITTER IR 940NM 100MA RADIAL
DatasheetRadial
63,592 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.35V 100mA 80mW/sr @ 100mA 20° Radial
TSAL5100
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | TSAL5100 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Viewing Angle | 20° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

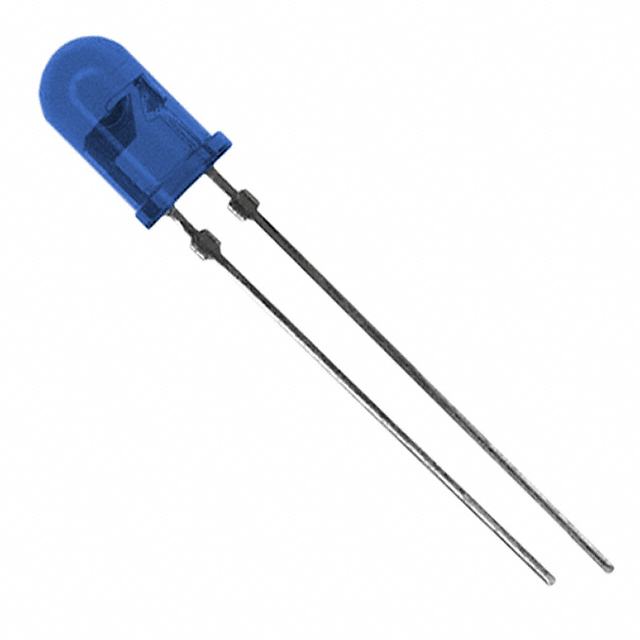

| Part Number | TSAL5300 | TSML1040 | TSMF1000 | TSHG8400 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 940NM 100MA RADIAL | EMITTER IR 940NM 100MA AXIAL | EMITTER IR 890NM 100MA 2SMD | EMITTER IR 830NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Bulk |
