TSAL6100UL
lmages are for reference only.TSAL6100UL
IR EMITTER HIPOWER 950NM 5MM 10D
DatasheetRadial
60,190 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 940nm 1.35V 100mA 80mW/sr @ 100mA 20° Radial
TSAL6100UL
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | - |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA |
| Wavelength | 940nm |
| Voltage - Forward (Vf) (Typ) | 1.35V |
| Viewing Angle | 20° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

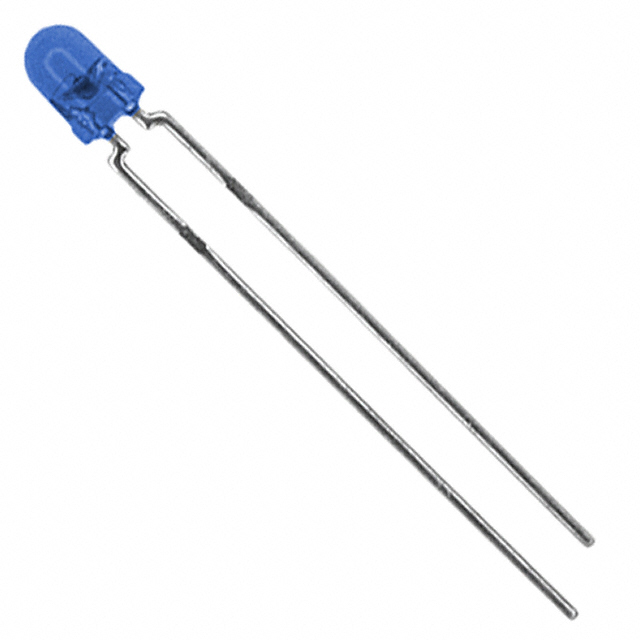

| Part Number | TSAL6100 | TSAL6102UL | TSAL4400 | TSAL5100 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 940NM 100MA RADIAL | IREMITTER HIGHPOWR 940NM 5MM 10D | EMITTER IR 940NM 100MA RADIAL | EMITTER IR 940NM 100MA RADIAL |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Bulk |
