TSHG5510
lmages are for reference only.TSHG5510
EMITTER IR 830NM 100MA RADIAL
DatasheetRadial
43,567 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Infrared (IR) Emitter 830nm 1.45V 100mA 18mW/sr @ 100mA 76° Radial
TSHG5510
| Category | Optoelectronics - LED Emitters Infrared-UV-Visible - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Base Product Number | TSHG5510 |
| Type | Infrared (IR) |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 18mW/sr @ 100mA |
| Wavelength | 830nm |
| Voltage - Forward (Vf) (Typ) | 1.45V |
| Viewing Angle | 76° |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | Radial |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

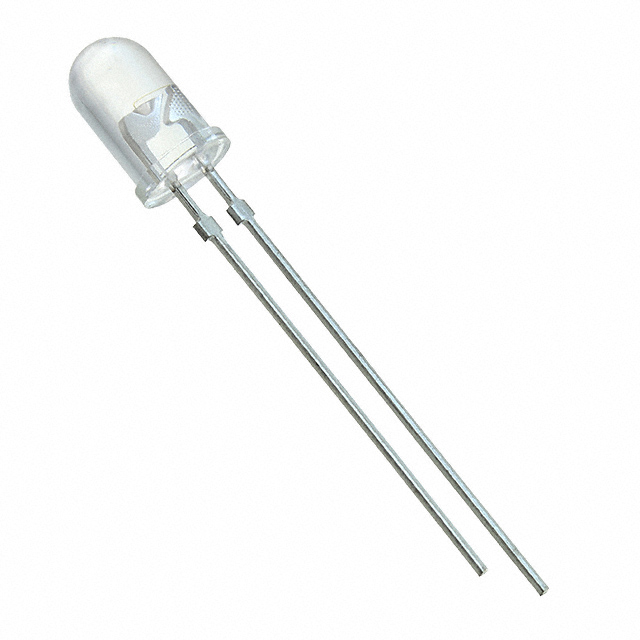

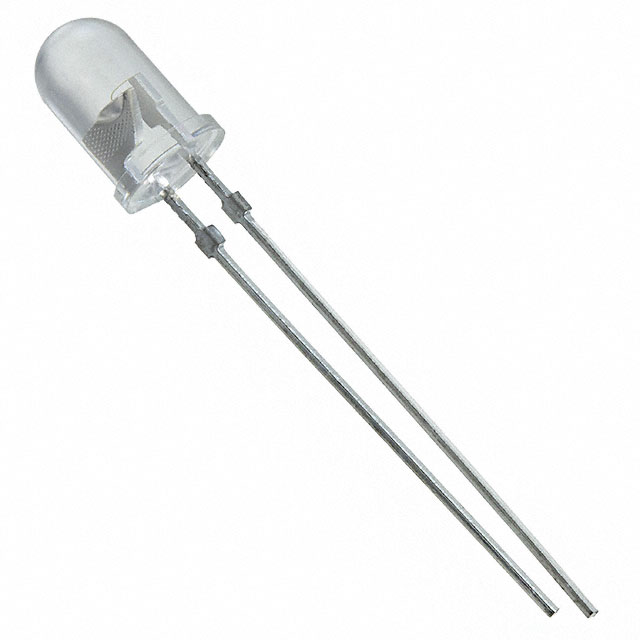

| Part Number | TSHG5210 | TSHG5410 | TSML1040 | TSMF1000 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | EMITTER IR 850NM 100MA RADIAL | EMITTER IR 850NM 100MA RADIAL | EMITTER IR 940NM 100MA AXIAL | EMITTER IR 890NM 100MA 2SMD |
| Series | - | - | - | - |
| Packaging | Bulk | Bulk | Bulk | Tape & Reel (TR)-->Cut Tape (CT) |
