TSM680P06DPQ56

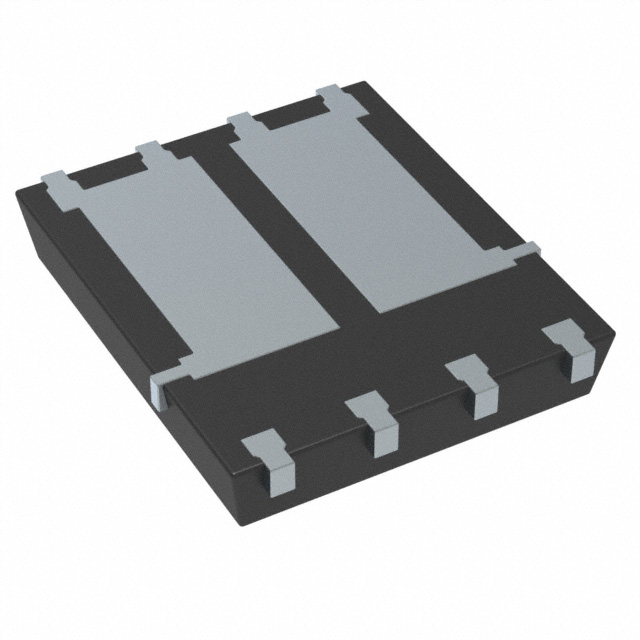

lmages are for reference only.TSM680P06DPQ56
MOSFET 2P-CH 60V 12A 8PDFN
Datasheet8-PowerTDFN
81,232 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Mosfet Array 60V 12A (Tc) 3.5W (Tc) Surface Mount 8-PDFN (5x6)
TSM680P06DPQ56
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Taiwan Semiconductor Corporation |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Technology | MOSFET (Metal Oxide) |
| Configuration | 2 P-Channel |
| FET Feature | - |
| Drain to Source Voltage (Vdss) | 60V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Tc) |
| Rds On (Max) @ Id, Vgs | 68mOhm @ 6A, 10V |
| Vgs(th) (Max) @ Id | 2.5V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs | 16.4nC @ 10V |
| Input Capacitance (Ciss) (Max) @ Vds | 870pF @ 30V |
| Power - Max | 3.5W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 8-PowerTDFN |
| Supplier Device Package | 8-PDFN (5x6) |
| Base Product Number | TSM680 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
|
|
| Part Number | TSM680P06DPQ56 RLG | TSM6502CR | TSM6502CR RLG | TSM6866SDCA |
| Manufacturer | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET 2P-CH 60V 12A 8PDFN | MOSFET N/P-CH 60V 24A 8PDFN | MOSFET N/P-CH 60V 24A 8PDFN | MOSFET 2N-CH 20V 6A 8TSSOP |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
