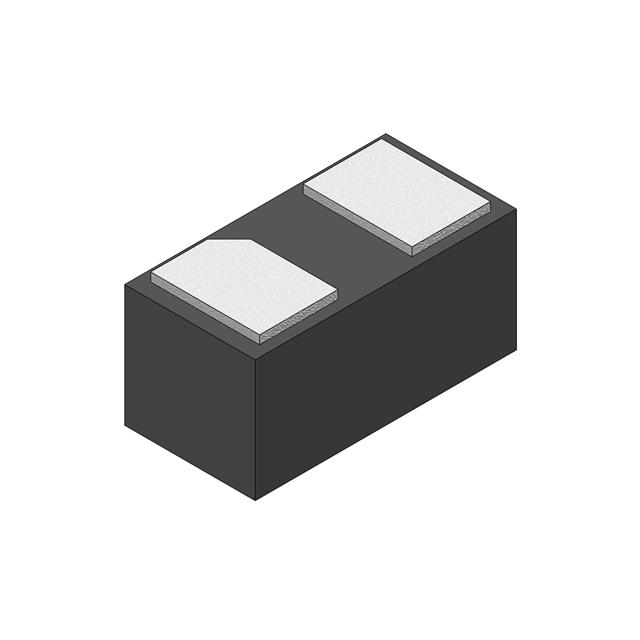

TVC5VB1SD-DFN0603-2LDG
lmages are for reference only.TVC5VB1SD-DFN0603-2LDG
TVS DIODE 5V 0.18PF DFN0603
Datasheet0201 (0603 Metric)
16,907 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4.7V (Typ) Clamp 4A (8/20µs) Ipp Tvs Diode Surface Mount 0201
TVC5VB1SD-DFN0603-2LDG
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | TVC |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 4.7V (Typ) |
| Current - Peak Pulse (10/1000µs) | 4A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | USB |
| Capacitance @ Frequency | 0.18pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 |
| Base Product Number | - |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

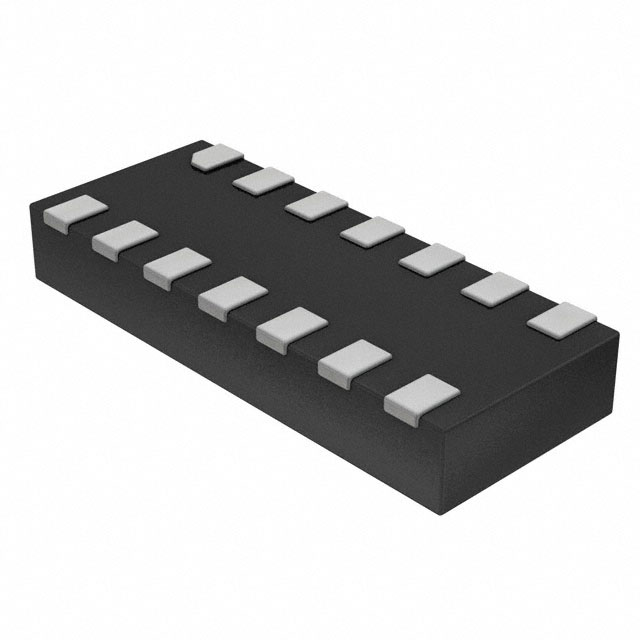

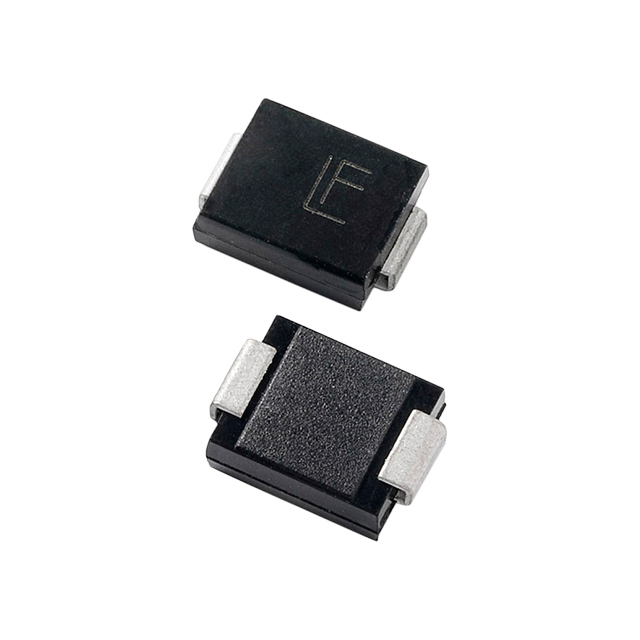

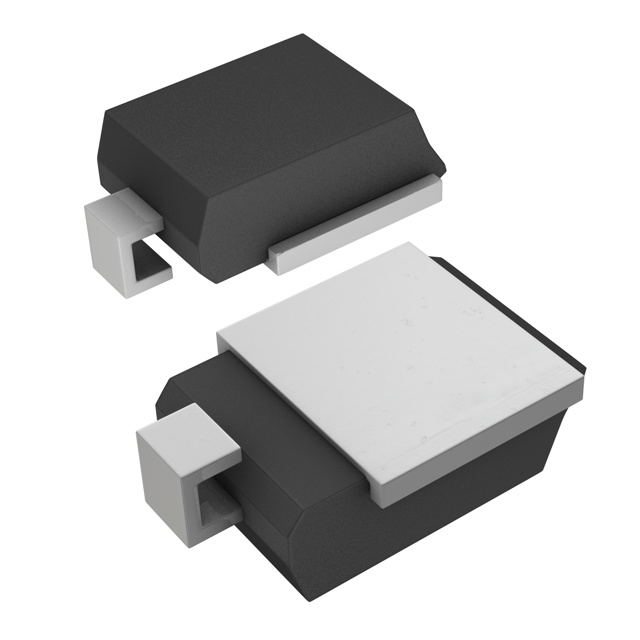

| Part Number | TVC5VB1S-DFN0603-2LDG | TPSMC27A | TLD8S22CAH | TPD6E05U06RVZR |
| Manufacturer | INPAQ Technology Co., Ltd | Littelfuse Inc. | Taiwan Semiconductor Corporation | Texas Instruments |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 5V 0.2PF DFN0603 | TVS DIODE 23.1VWM 37.5VC DO214AB | 6600W, 25.65V, 5%, BIDIRECTIONAL | TVS DIODE 5.5VWM 14VC 14USON |
| Series | INPAQ Technology Co., Ltd | Littelfuse Inc. | Taiwan Semiconductor Corporation | Texas Instruments |
| Packaging | Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
