TWR-5/3000-12/500-D12A-C
lmages are for reference only.TWR-5/3000-12/500-D12A-C
DC DC CONVERTER 5V +/-12V 20W
Datasheet8-DIP Module, 7 Leads
86,784 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 3 Output 5V 12V -12V 3A, 500mA, 500mA 9V - 36V Input
TWR-5/3000-12/500-D12A-C
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Murata Power Solutions Inc. |
| Series | TWR A (11W) |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 3 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | 12V |
| Voltage - Output 3 | -12V |
| Voltage - Output 4 | - |
| Current - Output (Max) | 3A, 500mA, 500mA |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | - |
| Operating Temperature | -40°C ~ 100°C |
| Efficiency | 82% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 8-DIP Module, 7 Leads |
| Size / Dimension | 2.00" L x 2.00" W x 0.45" H (50.8mm x 50.8mm x 11.4mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | TWR-5 |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |

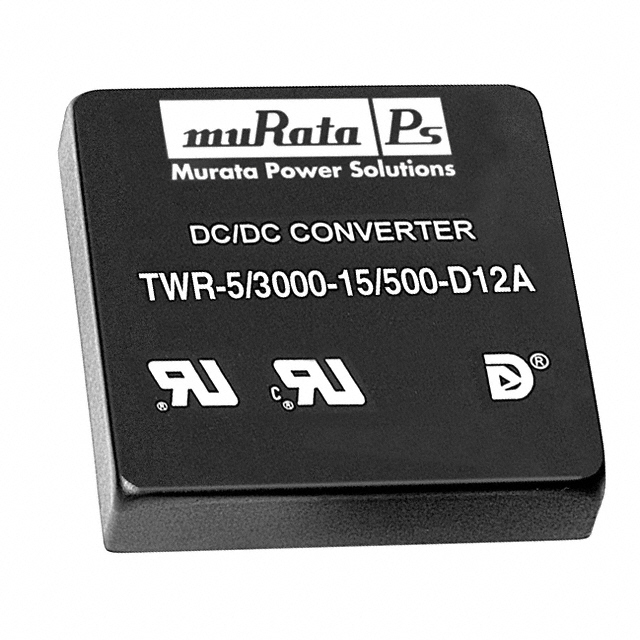

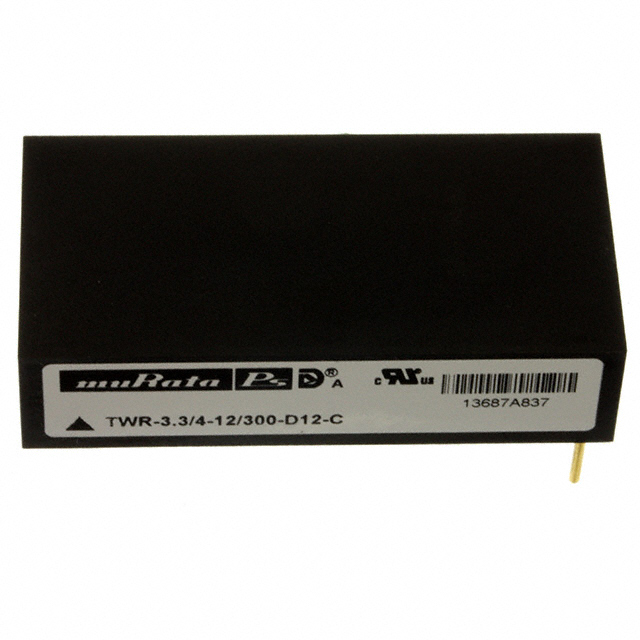

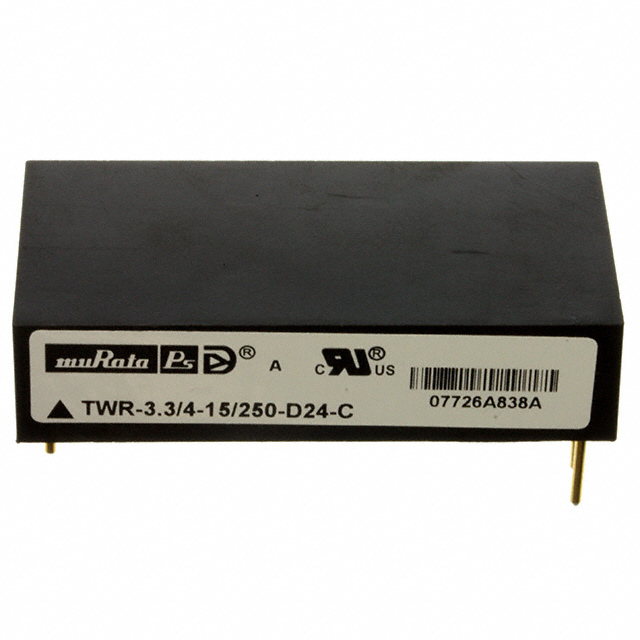

| Part Number | TWR-5/3000-15/500-D12A-C | TWR-5/3000-15/500-D48A-C | TWR-3.3/4-12/300-D12-C | TWR-3.3/4-15/250-D24-C |
| Manufacturer | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| RoHS Status | ROHS3 Compliant | |||
| Description | DC DC CONVERTER 5V +/-15V 20W | DC DC CONVERTER 5V +/-15V 20W | DC DC CONVERTER 3.3V +/-12V 20W | DC DC CONVERTER 3.3V +/-15V 20W |
| Series | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. | Murata Power Solutions Inc. |
| Packaging | Tube | Tube | Tube | Tube |
