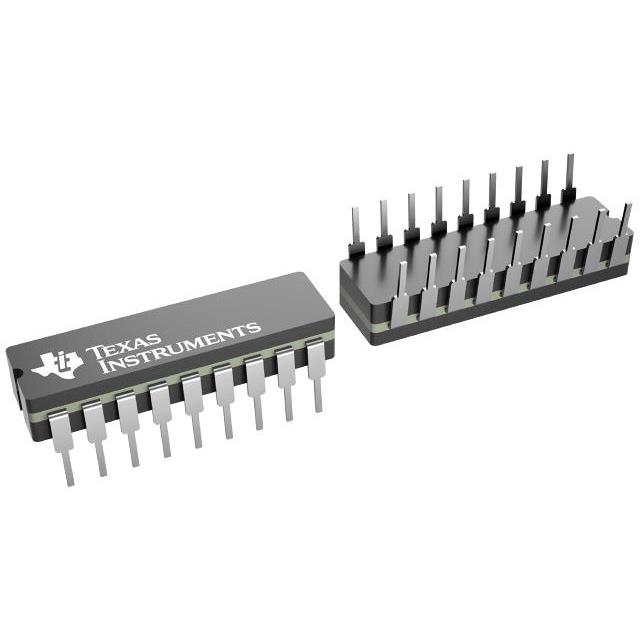

Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull Regulator Positive and Negative Output Step-Up/Step-Down DC-DC Controller IC 18-CDIP
UC1526AJ/80516
| Category | Integrated Circuits (ICs) - Power Management PMIC - DC DC Switching Controllers |
| Manufacturer | Unitrode |
| Series | - |
| Packaging | Bulk |
| RoHS Status | Not applicable |
| Output Type | Transistor Driver |
| Function | Step-Up/Step-Down |
| Output Configuration | Positive and Negative |
| Topology | Boost, Buck, Flyback, Forward, Full-Bridge, Half-Bridge, Push-Pull |
| Number of Outputs | 2 |
| Output Phases | 1 |
| Voltage - Supply (Vcc/Vdd) | 4.5V ~ 35V |
| Frequency - Switching | 1Hz ~ 600kHz |
| Duty Cycle (Max) | 49% |
| Synchronous Rectifier | Yes |
| Clock Sync | Yes |
| Serial Interfaces | - |
| Control Features | Enable, Frequency Control, Reset, Soft Start |
| Operating Temperature | -55°C ~ 125°C (TA) |
| Mounting Type | Through Hole |
| Package / Case | 18-CDIP (0.300", 7.62mm) |
| Supplier Device Package | 18-CDIP |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | UC1524AJ | UC1524AL883B | UC1525AJ | UC1526J |
| Manufacturer | Texas Instruments | Texas Instruments | Texas Instruments | Texas Instruments |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ADVANCED 40 VCC, DOUBLE ENDED 30 | UC1524A ADVANCED REGULATING PULS | REGULATING PULSE WIDTH MODULATOR | REGULATING PULSE WIDTH MODULATOR |
| Series | - | - | - | - |
| Packaging | Tube | Bulk | Tube | Tube |
