UCLAMP0511P.TCT
lmages are for reference only.UCLAMP0511P.TCT
TVS DIODE 5VWM 14VC SLP1006P2
Datasheet0402 (1006 Metric)
93,623 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
14V Clamp 12A (8/20µs) Ipp Tvs Diode Surface Mount SLP1006P2
UCLAMP0511P.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 5V (Max) |
| Voltage - Breakdown (Min) | 6V |
| Voltage - Clamping (Max) @ Ipp | 14V |
| Current - Peak Pulse (10/1000µs) | 12A (8/20µs) |
| Power - Peak Pulse | 170W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 75pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | SLP1006P2 |
| Base Product Number | UCLAMP0511 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

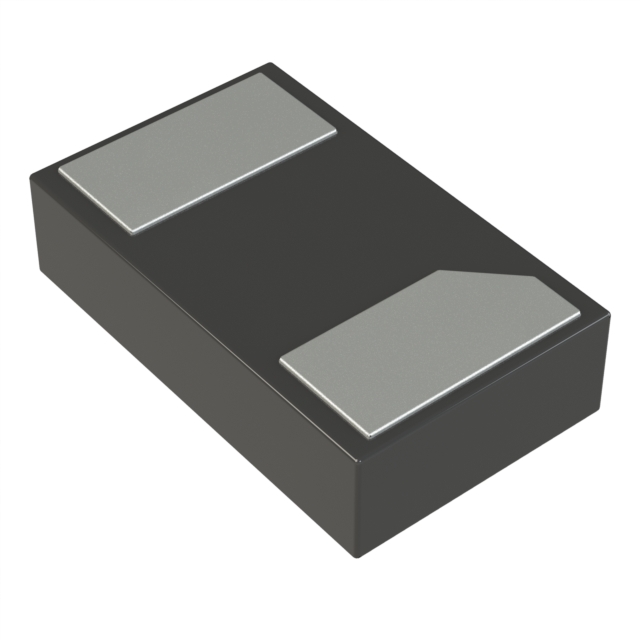

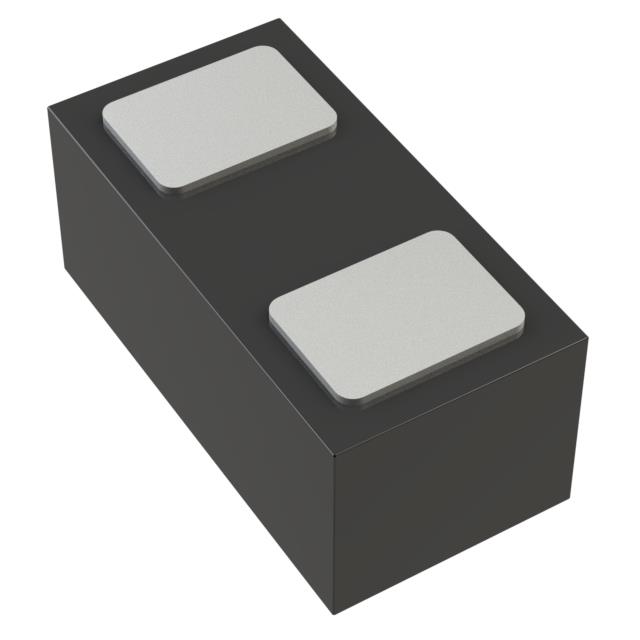

| Part Number | UCLAMP0511P.TNT | UCLAMP0511PQTCT | UCLAMP0511T.TCT | UCLAMP0511Z.TFT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | TVS DIODE 5VWM 14VC SLP1006P2 | TVS DIODE 5VWM 14VC SLP1006P2 | TVS DIODE 5VWM 15VC SLP1006P2T | 1-LINE 5V 4PF IN BI SLP0603P2X3 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
