UCLAMP2221ZVTFT
lmages are for reference only.UCLAMP2221ZVTFT
UCLAMP, 1-LINE 22V TVS SLP1006P2
Datasheet0402 (1006 Metric)
13,485 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Clamp 14A (8/20µs) Ipp Tvs Diode Surface Mount DFN1006-2
UCLAMP2221ZVTFT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 21.5V |
| Voltage - Breakdown (Min) | - |
| Voltage - Clamping (Max) @ Ipp | - |
| Current - Peak Pulse (10/1000µs) | 14A (8/20µs) |
| Power - Peak Pulse | - |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1006 Metric) |
| Supplier Device Package | DFN1006-2 |
| Base Product Number | - |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

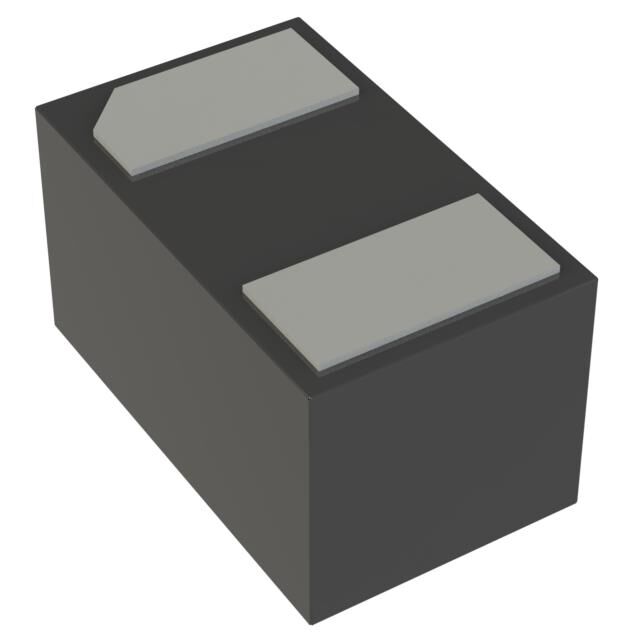

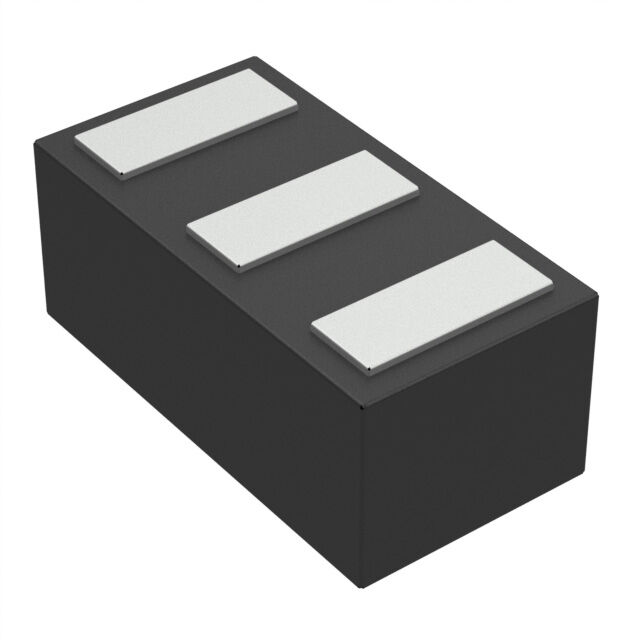

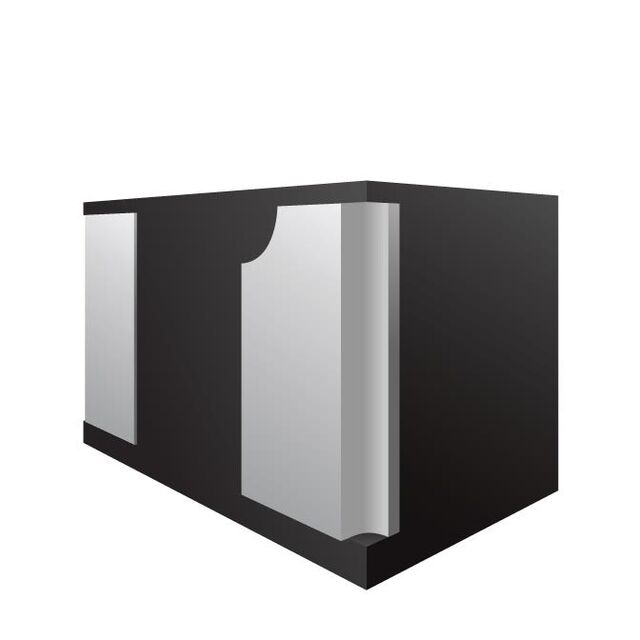

| Part Number | UCLAMP02101ZA.F | UCLAMP0301PQTNT | UCLAMP03321PQ.C | UCLAMP03351PW.C |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | 2.1V 36PF TYP 15A 0.08R ESD SLP0 | TVS DIODE 3VWM 8VC SLP1006P2 | 1-LINE, 3.3V ESD & SURGE PROTECT | 3,3V ESD & EOS PROTECTION |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
