UCLAMP2411ZATFT
lmages are for reference only.UCLAMP2411ZATFT
TVS DIODE 24VWM 45V SLP0603P2X3F
Datasheet0201 (0603 Metric)
72,277 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
45V Clamp 3A (8/20µs) Ipp Tvs Diode Surface Mount SLP0603P2X3F
UCLAMP2411ZATFT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | µClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | RoHS Compliant |
| Type | Zener |
| Bidirectional Channels | 1 |
| Voltage - Reverse Standoff (Typ) | 24V (Max) |
| Voltage - Breakdown (Min) | 27V |
| Voltage - Clamping (Max) @ Ipp | 45V |
| Current - Peak Pulse (10/1000µs) | 3A (8/20µs) |
| Power - Peak Pulse | 150W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 9pF @ 1MHz |
| Operating Temperature | -40°C ~ 85°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | SLP0603P2X3F |
| Base Product Number | UCLAMP2411 |
| Unidirectional Channels | - |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
|

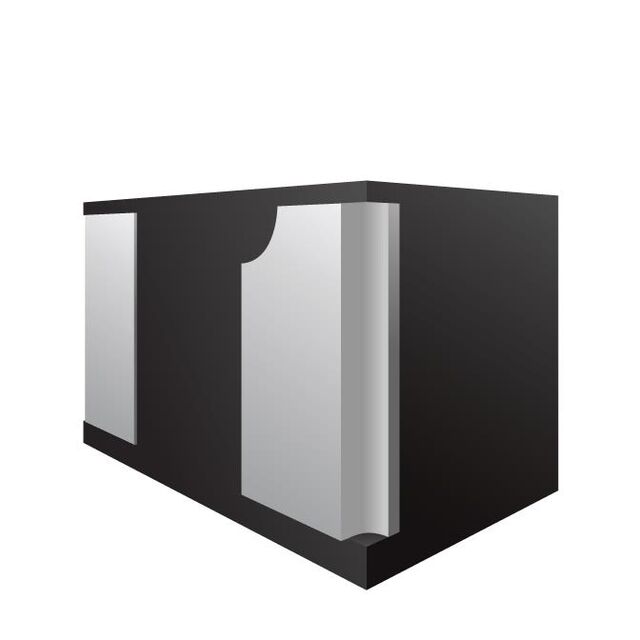

| Part Number | UCLAMP2411PW.C | UCLAMP2417P.TCT | UCLAMP02101ZA.F | UCLAMP0301PQTNT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | 24V ESD & EOS PROTECTION | TVS DIODE 24VWM 75VC SGP2626N8 | 2.1V 36PF TYP 15A 0.08R ESD SLP0 | TVS DIODE 3VWM 8VC SLP1006P2 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) |
