UCLAMP3301D.TCT
lmages are for reference only.UCLAMP3301D.TCT
TVS DIODE 3.3VWM 9.5VC SOD323
DatasheetSC-76, SOD-323
98,341 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
9.5V Clamp 10A (8/20µs) Ipp Tvs Diode Surface Mount SOD-323
UCLAMP3301D.TCT
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Semtech Corporation |
| Series | uClamp® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 3.3V (Max) |
| Voltage - Breakdown (Min) | 3.5V |
| Voltage - Clamping (Max) @ Ipp | 9.5V |
| Current - Peak Pulse (10/1000µs) | 10A (8/20µs) |
| Power - Peak Pulse | 100W |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | 50pF @ 1MHz |
| Operating Temperature | -55°C ~ 125°C (TJ) |
| Mounting Type | Surface Mount |
| Package / Case | SC-76, SOD-323 |
| Supplier Device Package | SOD-323 |
| Base Product Number | UCLAMP3301 |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

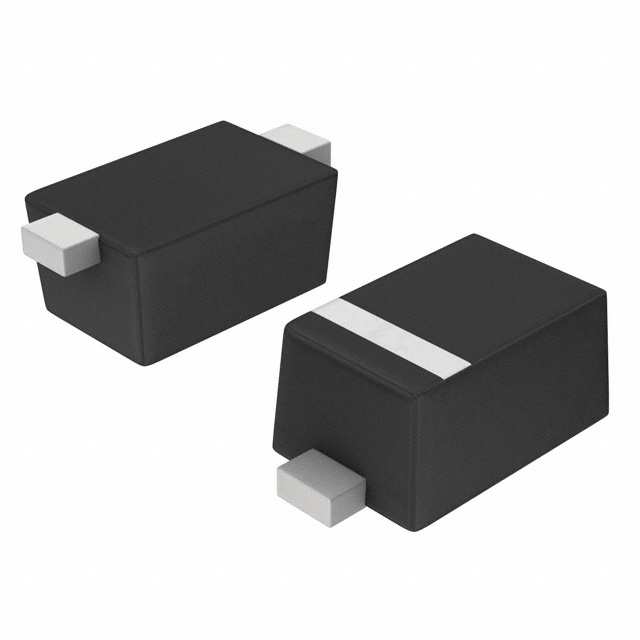

| Part Number | UCLAMP3301H.TCT | UCLAMP3301H.THT | UCLAMP3301P.TCT | UCLAMP3304A.TCT |
| Manufacturer | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 3.3VWM 8VC SOD523 | TVS DIODE 3.3VWM 8VC SOD523 | TVS DIODE 3.3VWM 8VC SLP1006P2 | TVS DIODE 3.3VWM 8VC SC89-6 |
| Series | Semtech Corporation | Semtech Corporation | Semtech Corporation | Semtech Corporation |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
