UF4SC120023B7SSB
lmages are for reference only.Payment Methods
Delivery Services

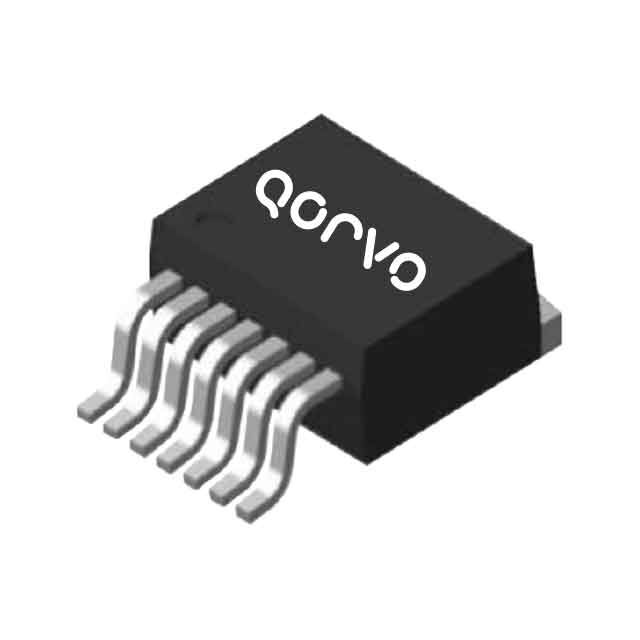

N-Channel, Depletion Mode 1200 V 72A (Tj) 385W (Tc) Surface Mount D2PAK-7L
UF4SC120023B7SSB
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Qorvo |
| Series | - |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel, Depletion Mode |
| Technology | SiCFET (Silicon Carbide) |
| Drain to Source Voltage (Vdss) | 1200 V |
| Current - Continuous Drain (Id) @ 25°C | 72A (Tj) |
| Drive Voltage (Max Rds On, Min Rds On) | 12V |
| Rds On (Max) @ Id, Vgs | 30mOhm @ 40A, 12V |
| Vgs(th) (Max) @ Id | 6V @ 10mA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1430 pF @ 800 V |
| FET Feature | - |
| Power Dissipation (Max) | 385W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | D2PAK-7L |
| Package / Case | TO-263-8, D2PAK (7 Leads + Tab), TO-263CA |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 37.8 nC @ 15 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

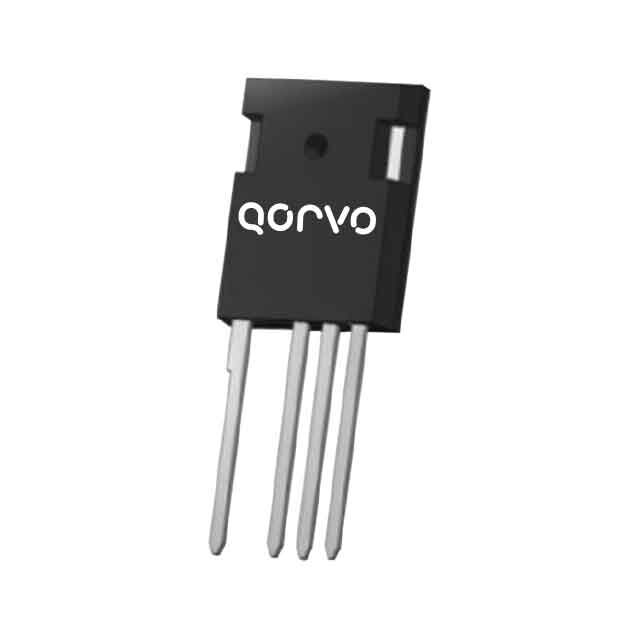

| Part Number | UF4SC120023B7S | UF4SC120023K4S | UF4SC120030B7S | UF4SC120030B7SSB |
| Manufacturer | Qorvo | Qorvo | Qorvo | Qorvo |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | 1200V/23MO,SICFET,G4,TO263-7 | 1200V/23MOHM SIC STACKED FAST CA | 1200V/30MO,SICFET,G4,TO263-7 | 1200V/30MO,SICFET,G4,TO263-7 |
| Series | - | - | - | - |
| Packaging | Bulk | Tube | Bulk | Bulk |
