Product CatalogPart Number
UGS1C102MCG0816RU
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 1000UF 20% 16V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
60,233 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UGS1C102MCG0816RU
UGS1C102MCG0816RU
lmages are for reference only.Payment Methods
Delivery Services
1000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 2000 Hrs @ 105°C
Quick Inquiry
UGS1C102MCG0816RU
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | UGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 1000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 6.1 A @ 100 kHz |
| Lead Spacing | 0.138" (3.50mm) |
| Size / Dimension | 0.315" Dia (8.00mm) |
| Height - Seated (Max) | 0.689" (17.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | UGS1C102MP30816RU | UGP0J152MNN1010U | UGP1A102MNN1012PRU | UGP1A152MP51012U |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 1000UF 20% 16V TH | CAP ALUM POLY 1500UF 20% 6.3V TH | CAP ALUM POLY 1000UF 20% 10V TH | CAP ALUM POLY 1500UF 20% 10V TH |
| Series | UGS | UGP | UGP | UGP |
| Packaging | Cut Tape (CT)-->Tape & Box (TB) | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) |
Customers Also Interested in
Recommended Products
UGS1C102MP30816RU
Chinsan (Elite)
UGS1C122MP30820RU
Chinsan (Elite)
UGS1C152MNN1016F5
Chinsan (Elite)
UGS1C182MP51016SU
Chinsan (Elite)

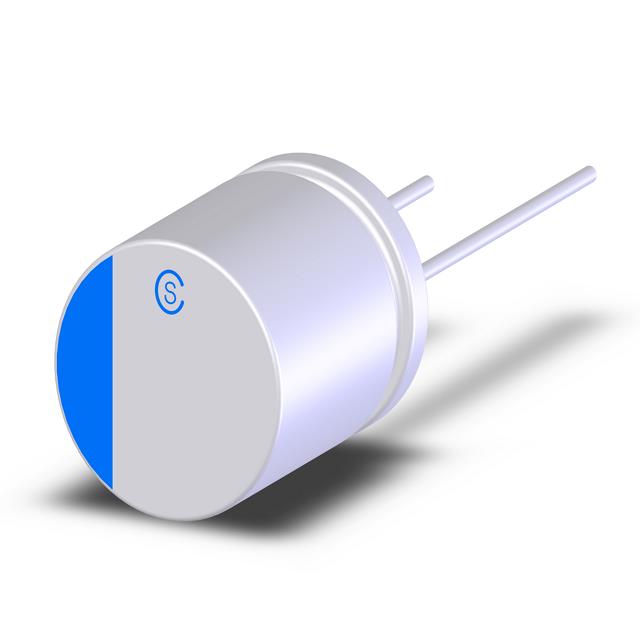

UGS1C182MP51020U
