Product CatalogPart Number
UGS1C302MNN1022RU
Manufacturer
Chinsan (Elite)Description
CAP ALUM POLY 3000UF 20% 16V TH
Datasheet
DatasheetPackage
Radial, Can
In Stock
80,799 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
UGS1C302MNN1022RU
UGS1C302MNN1022RU
lmages are for reference only.Payment Methods
Delivery Services
3000 µF 16 V Aluminum - Polymer Capacitors Radial, Can 10mOhm 2000 Hrs @ 105°C
Quick Inquiry
UGS1C302MNN1022RU
Specifications
| Category | Capacitors - Aluminum Polymer Capacitors - |
| Manufacturer | Chinsan (Elite) |
| Series | UGS |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Polymer |
| Capacitance | 3000 µF |
| Tolerance | ±20% |
| Voltage - Rated | 16 V |
| ESR (Equivalent Series Resistance) | 10mOhm |
| Lifetime @ Temp. | 2000 Hrs @ 105°C |
| Operating Temperature | -55°C ~ 105°C |
| Ratings | - |
| Applications | General Purpose |
| Ripple Current @ Low Frequency | - |
| Ripple Current @ High Frequency | 7.6 A @ 100 kHz |
| Lead Spacing | 0.197" (5.00mm) |
| Size / Dimension | 0.394" Dia (10.00mm) |
| Height - Seated (Max) | 0.925" (23.50mm) |
| Surface Mount Land Size | - |
| Mounting Type | Through Hole |
| Package / Case | Radial, Can |
| Base Product Number | - |
| Features | - |
| Impedance | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

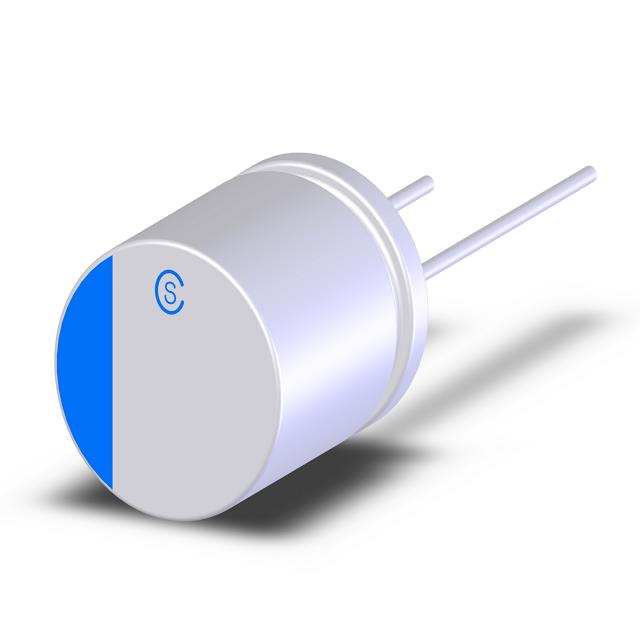

| Part Number | UGP0J152MNN1010U | UGP1A102MNN1012PRU | UGP1A152MP51012U | UGP1A471MCG0808U |
| Manufacturer | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) | Chinsan (Elite) |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CAP ALUM POLY 1500UF 20% 6.3V TH | CAP ALUM POLY 1000UF 20% 10V TH | CAP ALUM POLY 1500UF 20% 10V TH | CAP ALUM POLY 470UF 20% 10V TH |
| Series | UGP | UGP | UGP | UGP |
| Packaging | Bulk | Bulk | Cut Tape (CT)-->Tape & Box (TB) | Bulk |
