URB2403YMD-20WHR3

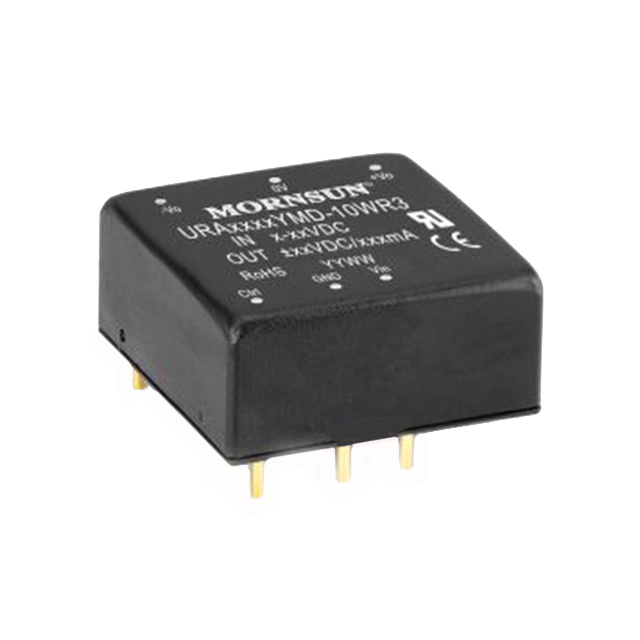

lmages are for reference only.URB2403YMD-20WHR3
ISOLATED MODULE DC DC CONVERTER
Datasheet6-DIP Module
38,309 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 3.3V 5A 9V - 36V Input
URB2403YMD-20WHR3
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 3.3V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 5A |
| Power (Watts) | 17 W |
| Applications | ITE (Commercial), Railway |
| Features | Adjustable Output, Heat Sink |
| Operating Temperature | -40°C ~ 95°C (With Derating) |
| Efficiency | 88% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 1.00" L x 1.00" W x 0.64" H (25.4mm x 25.4mm x 16.2mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, EN, IEC, UKCA, UL |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
| Product Attribute |  |
 |
 |
 |
| Part Number | URB2403YMD-20WR3 | URB2403YMD-10WHR3 | URB2403YMD-10WR3 | URB2403YMD-15WR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | RoHS Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | DC DC CONVERTER 3.3V 17W | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER 3.3V 7.9W | DC DC CONVERTER 3.3V 13W |
| Series | ||||
| Packaging | URB2403YMD-20WR3 (20W) | URB_YMD-10WR3 (10W) | URB2403YMD-10WR3 (10W) | URB2403YMD-15WR3 (15W) |
