Product CatalogPart Number
URB2412LD-20WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 12V 20W
Datasheet
DatasheetPackage
6-DIP Module
In Stock
32,447 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
URB2412LD-20WR3
URB2412LD-20WR3

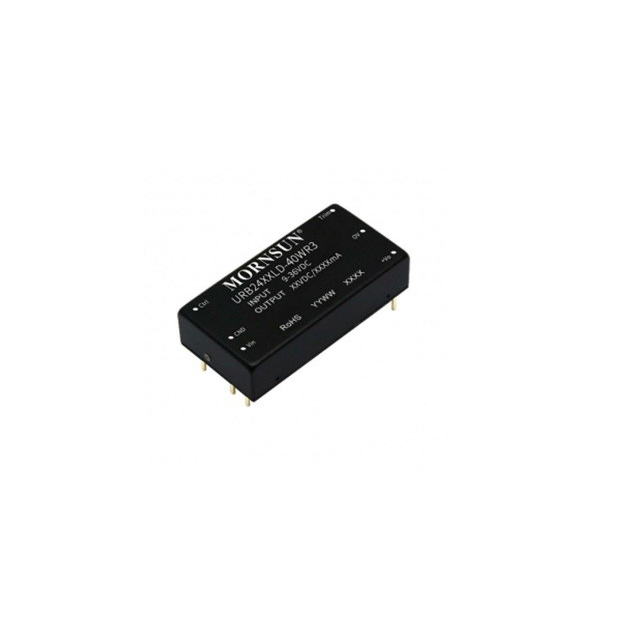

lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 1.667A 9V - 36V Input
Quick Inquiry
URB2412LD-20WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 9V |
| Voltage - Input (Max) | 36V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1.667A |
| Power (Watts) | 20 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote On/Off |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 89% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 6-DIP Module |
| Size / Dimension | 2.00" L x 1.00" W x 0.46" H (50.8mm x 25.4mm x 11.8mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | CB, CE, cURus, UL |
| Standard Number | 60950-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |
| Part Number | URB2412LD-30WHR3 | URB2412LD-30WR3 | URB2412LD-40WR3 | URB2412LD-50WHR3 |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER 12V 30W | ISOLATED MODULE DC DC CONVERTER | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | URB_LD-30WR3 (30W) | URB2412LD-30WR3 (30W) | URB24_LD-40W(H)R3 (40W) | URB24_LD-50W(H)R3(A2S/A4S) (50W) |
