Product CatalogPart Number
V7815-1000
Manufacturer
CUI Inc.Description
DC DC CONVERTER 15V 15W
Datasheet
DatasheetPackage
3-SIP Module
In Stock
21,957 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
V7815-1000
V7815-1000
lmages are for reference only.Payment Methods
Delivery Services
Linear Regulator Replacement DC DC Converter 1 Output 15V 1A 20V - 32V Input
Quick Inquiry
V7815-1000
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | CUI Inc. |
| Series | V78-1000 |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Type | Linear Regulator Replacement |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 20V |
| Voltage - Input (Max) | 32V |
| Voltage - Output 1 | 15V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 1A |
| Power (Watts) | 15 W |
| Applications | ITE (Commercial) |
| Features | OTP, SCP |
| Operating Temperature | -40°C ~ 85°C |
| Efficiency | 94% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | 3-SIP Module |
| Size / Dimension | 0.45" L x 0.35" W x 0.69" H (11.5mm x 9.0mm x 17.5mm) |
| Supplier Device Package | - |
| Control Features | - |
| Approval Agency | - |
| Standard Number | - |
| Base Product Number | V7815 |
| Voltage - Isolation | - |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
|

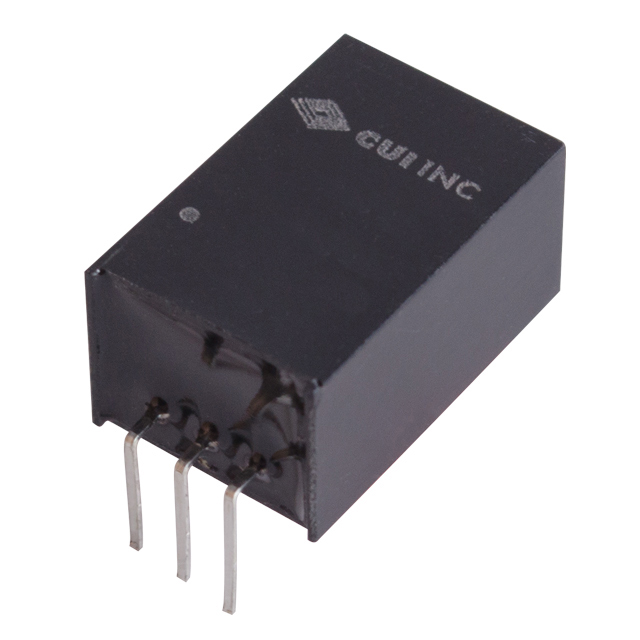

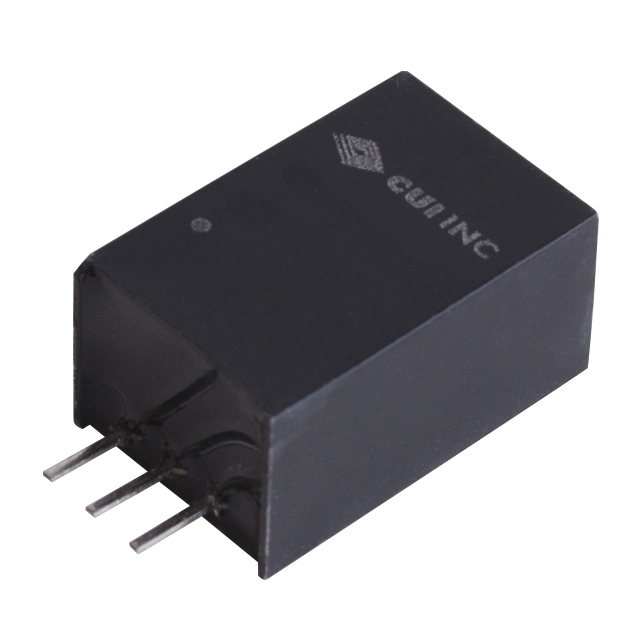

| Part Number | V7815-1000R | V7812-1000 | V7812-1000R | V7812-1000R |
| Manufacturer | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER 15V 15W | DC DC CONVERTER 12V 12W | DC DC CONVERTER 12V 12W | DC DC CONVERTER 12V 12W |
| Series | CUI Inc. | CUI Inc. | CUI Inc. | CUI Inc. |
| Packaging | Tube | Tube | Tube | Tube |
