Product CatalogPart Number
VCB4812SBO-30WR3
Manufacturer
Mornsun America, LLCDescription
DC DC CONVERTER 12V 30W
Datasheet
DatasheetPackage
Sixteenth Brick
In Stock
11,467 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VCB4812SBO-30WR3
VCB4812SBO-30WR3
lmages are for reference only.Payment Methods
Delivery Services
Isolated Module DC DC Converter 1 Output 12V 2.5A 36V - 75V Input
Quick Inquiry
VCB4812SBO-30WR3
Specifications
| Category | Power Supplies - Board Mount - DC DC Converters - |
| Manufacturer | Mornsun America, LLC |
| Series | |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Type | Isolated Module |
| Number of Outputs | 1 |
| Voltage - Input (Min) | 36V |
| Voltage - Input (Max) | 75V |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 2.5A |
| Power (Watts) | 30 W |
| Applications | ITE (Commercial) |
| Features | Adjustable Output, Remote Sense |
| Operating Temperature | -40°C ~ 85°C (With Derating) |
| Efficiency | 90% |
| Grade | - |
| Qualification | - |
| Mounting Type | Through Hole |
| Package / Case | Sixteenth Brick |
| Size / Dimension | 1.30" L x 0.90" W x 0.36" H (33.0mm x 22.9mm x 9.2mm) |
| Supplier Device Package | Sixteenth Brick |
| Control Features | - |
| Approval Agency | CE |
| Standard Number | 62368-1 |
| Base Product Number | - |
| Voltage - Isolation | 1.5 kV |
Parts with Similar Specifications
| Product Attribute |  |
 |
 |
 |

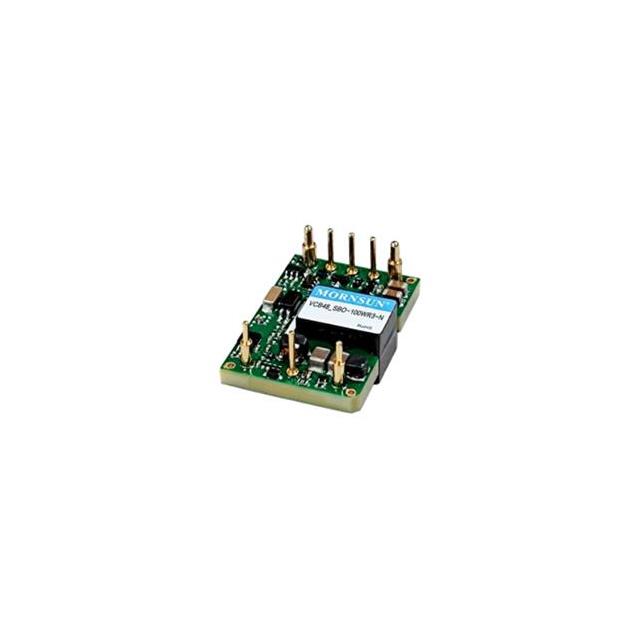

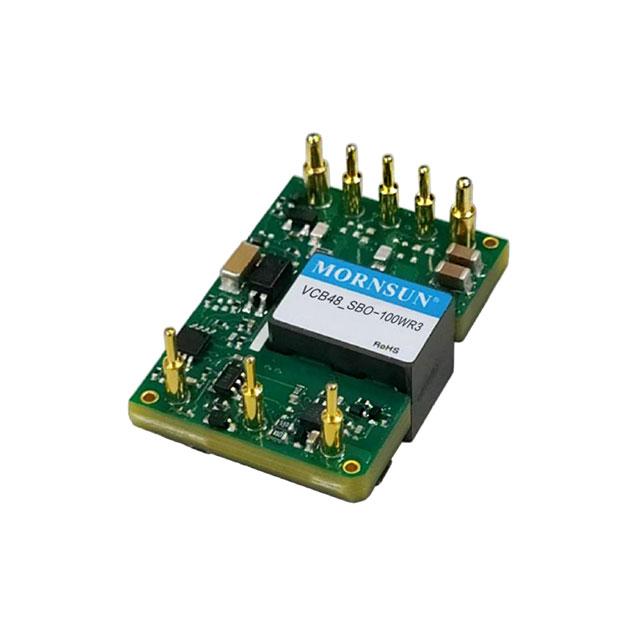

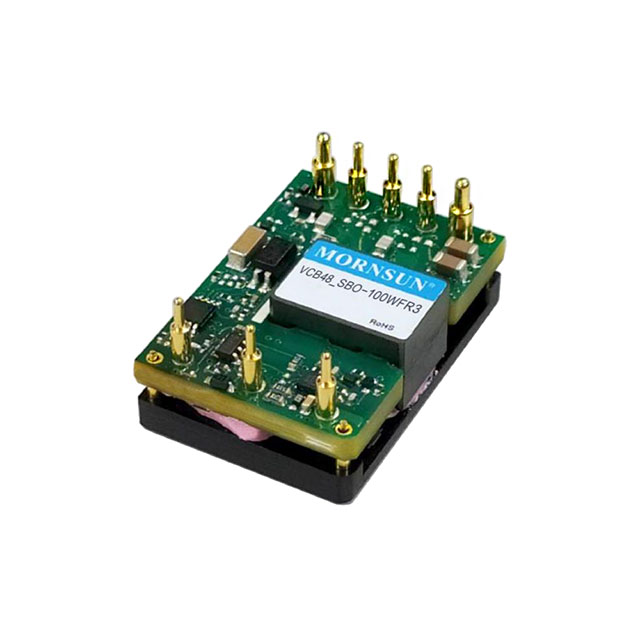

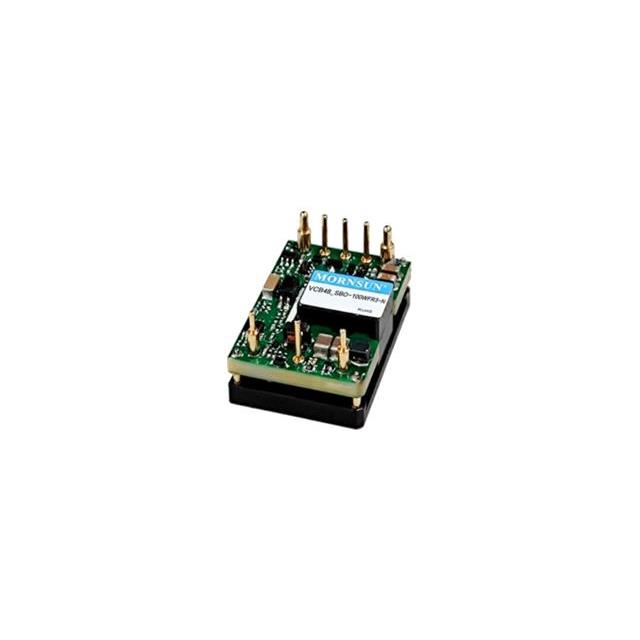

| Part Number | VCB4812SBO-100WFR3 | VCB4812SBO-100WFR3-N | VCB4812SBO-100WR3 | VCB4812SBO-100WR3-N |
| Manufacturer | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC | Mornsun America, LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DC DC CONVERTER, 100W, 12V, HEAT | ISOLATED MODULE DC DC CONVERTER | DC DC CONVERTER, 100W, 12V | ISOLATED MODULE DC DC CONVERTER |
| Series | ||||
| Packaging | VCB48_SBO-100WFR3 (100W) | VCB48_SBO-100W(F)R3(-N) | VCB48_SBO-100WR3 (100W) | VCB48_SBO-100W(F)R3(-N) (100W) |
