VLDB1232RG-08
lmages are for reference only.VLDB1232RG-08
LED BLUE 2SMD
Datasheet2-SMD, Gull Wing
54,112 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Blue 465nm LED Indication - Discrete 3V 2-SMD, Gull Wing
VLDB1232RG-08
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLDB1232 |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue |
| Configuration | - |
| Lens Color | - |
| Lens Transparency | - |
| Millicandela Rating | 3500mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 3V |
| Current - Test | 20mA |
| Viewing Angle | 18° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | 465nm |
| Wavelength - Peak | 460nm |
| Features | - |
| Package / Case | 2-SMD, Gull Wing |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.30mm L x 2.30mm W |
| Height (Max) | 3.12mm |
| Base Product Number | VLDB1232 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

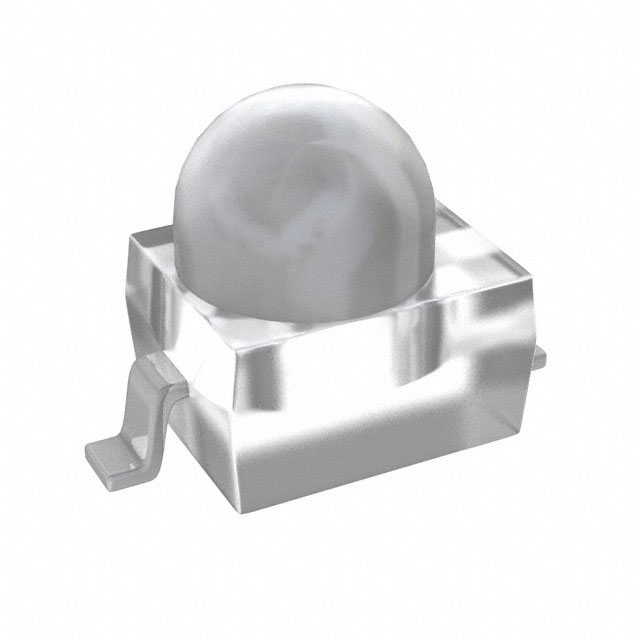

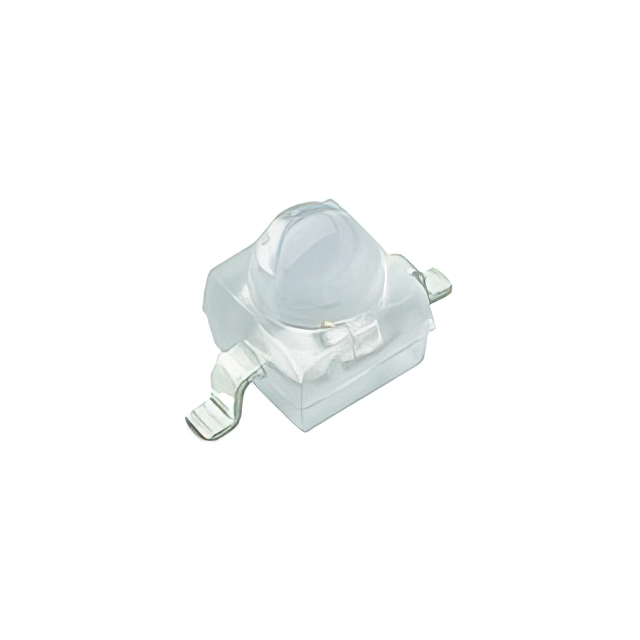

| Part Number | VLDB1232G-08 | VLDB1232R-08 | VLDK1235G | VLDK1235G-08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | LED BLUE DOME LENS 2SMD | LED BLUE 2SMD BOTTOM ENT | LED AMBER CLEAR 2SMD | LED AMBER CLEAR 2SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
