VLDY1235R
lmages are for reference only.VLDY1235R
LED YELLOW CLEAR 2SMD BOTTOM ENT
Datasheet2-SMD, Z-Bend
84,304 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Yellow 589nm LED Indication - Discrete 2.3V 2-SMD, Z-Bend
VLDY1235R
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Vishay Semiconductor Opto Division |
| Series | VLD.1235 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | Yellow |
| Configuration | Standard |
| Lens Color | Colorless |
| Lens Transparency | Clear |
| Millicandela Rating | 18000mcd |
| Lens Style | Round with Domed Top |
| Lens Size | 1.80mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.3V |
| Current - Test | 50mA |
| Viewing Angle | 11° |
| Mounting Type | Surface Mount, Bottom Entry |
| Wavelength - Dominant | 589nm |
| Wavelength - Peak | 591nm |
| Features | - |
| Package / Case | 2-SMD, Z-Bend |
| Supplier Device Package | 2-SMD |
| Size / Dimension | 2.30mm L x 2.30mm W |
| Height (Max) | 2.97mm |
| Base Product Number | VLDY1235 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

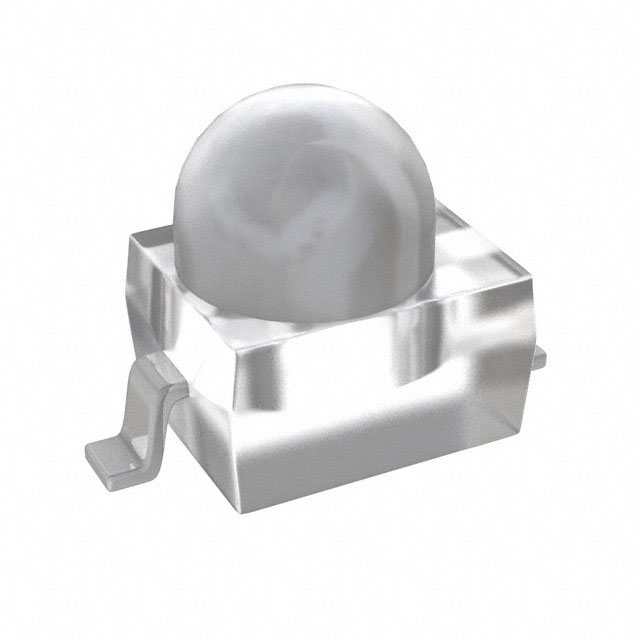

| Part Number | VLDY1235G | VLDB1232G-08 | VLDB1232R-08 | VLDB1232RG-08 |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | LED YELLOW CLEAR 2SMD | LED BLUE DOME LENS 2SMD | LED BLUE 2SMD BOTTOM ENT | LED BLUE 2SMD |
| Series | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
