VSTW1154LCSE-3D3B3-TR
lmages are for reference only.VSTW1154LCSE-3D3B3-TR
LED BLUE-GREEN DIFF 2PLCC SMD
Datasheet2-PLCC
12,704 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Blue-Green LED Indication - Discrete 3.4V 2-PLCC
VSTW1154LCSE-3D3B3-TR
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Color | Blue-Green |
| Configuration | Standard |
| Lens Color | Green |
| Lens Transparency | Diffused |
| Millicandela Rating | 2000mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 30mA |
| Viewing Angle | 120°, 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2-PLCC |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | VSTW1154 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
|
 |
| Part Number | VSTW1152GDSE-3D3L3-TR | VSTW1152GDSE-TR | VSTW1154LA3SE-102-TR | VSTW1154LA3SE-3D1E3-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | |

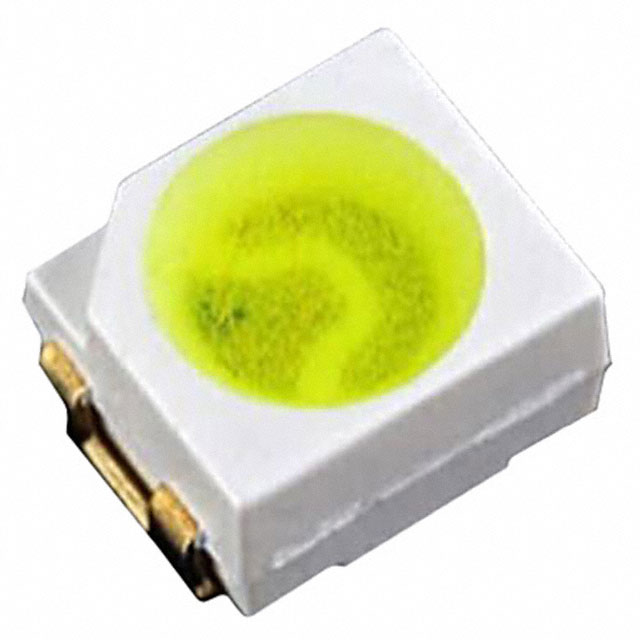

| Description | LED INDICATION TOP VIEW SMD | LED WHITE DIFFUSED 3SMD | LED INDICATION SMD | LED BLUE DIFFUSED 2PLCC SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
