Product CatalogPart Number
VSTW1154LDSE-3D4K3-TR
Manufacturer
Stanley Electric CoDescription
LED WHITE DIFFUSED 2PLCC SMD
Datasheet
DatasheetPackage
2-PLCC
In Stock
21,691 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
VSTW1154LDSE-3D4K3-TR
VSTW1154LDSE-3D4K3-TR
lmages are for reference only.Payment Methods
Delivery Services
White LED Indication - Discrete 3.4V 2-PLCC
Quick Inquiry
VSTW1154LDSE-3D4K3-TR
Specifications
| Category | Optoelectronics - LED Indication Discrete - |
| Manufacturer | Stanley Electric Co |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Color | White |
| Configuration | Standard |
| Lens Color | Yellow |
| Lens Transparency | Diffused |
| Millicandela Rating | 2200mcd |
| Lens Style | Round with Flat Top |
| Lens Size | 2.40mm Dia |
| Voltage - Forward (Vf) (Typ) | 3.4V |
| Current - Test | 30mA |
| Viewing Angle | 120°, 120° |
| Mounting Type | Surface Mount |
| Wavelength - Dominant | - |
| Wavelength - Peak | - |
| Features | - |
| Package / Case | 2-PLCC |
| Supplier Device Package | 2-PLCC |
| Size / Dimension | 3.20mm L x 2.80mm W |
| Height (Max) | 2.10mm |
| Base Product Number | VSTW1154 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
|
| Part Number | VSTW1154LDSE-3D4L3-C-TR | VSTW1154LDS-E-3D4D8-TR | VSTW1154LDS-E-TR | VSTW1154LDS-TR |
| Manufacturer | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| RoHS Status | ROHS3 Compliant | |||
| Description | LED INDICATION SMD | LED INDICATION SMD | LED WHITE DIFFUSED 2PLCC SMD | LED INDICATION SMD |
| Series | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co | Stanley Electric Co |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Bulk |
Customers Also Interested in
Recommended Products
VSTW1152GDSE-3D3L3-TR
Stanley Electric Co
VSTW1152GDSE-TR
Stanley Electric Co
VSTW1154LA3SE-102-TR
Stanley Electric Co
VSTW1154LA3SE-3D1E3-TR
Stanley Electric Co
VSTW1154LA3SE-3D1Y2-TR
Stanley Electric Co

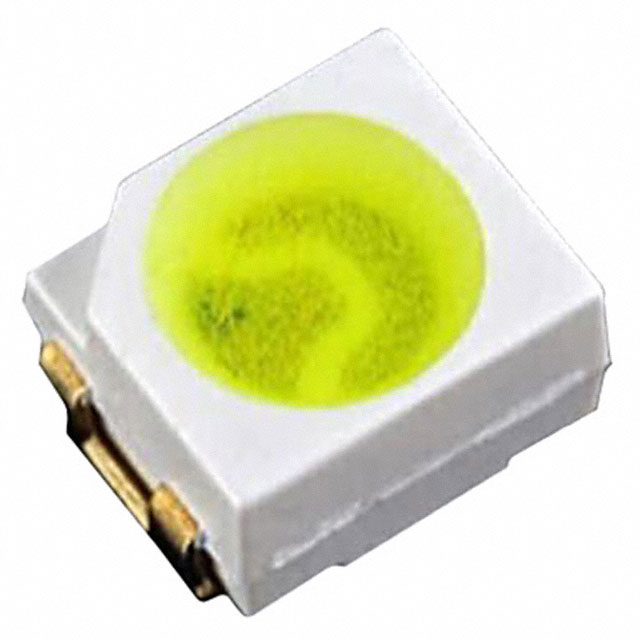

VSTW1154LCSE-3D3B3-TR
Stanley Electric Co
VSTW1154LDS-E-3D4D8-TR
Stanley Electric Co

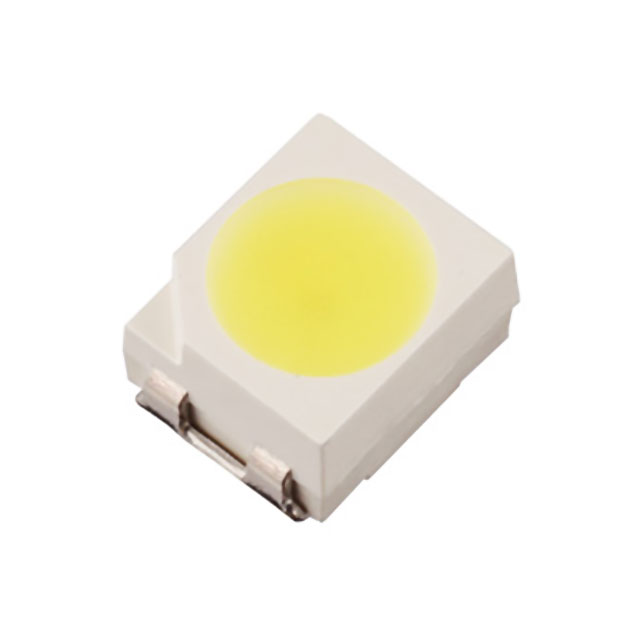

VSTW1154LDS-E-TR
