WCI1005CP12NGDG

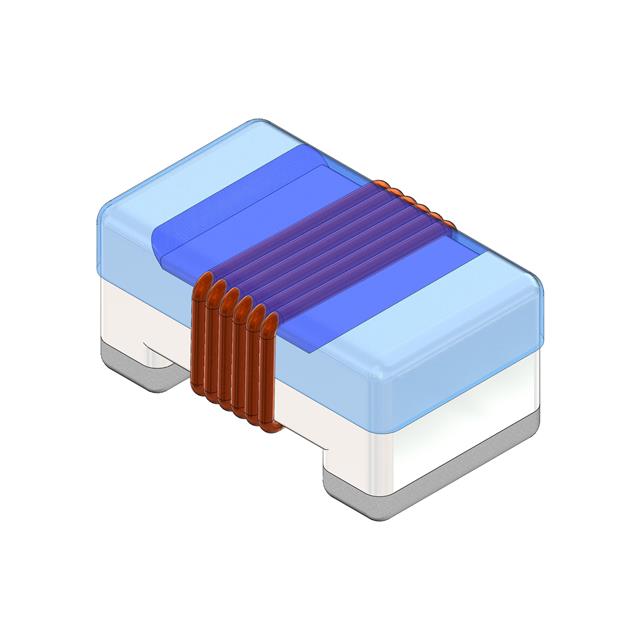

lmages are for reference only.WCI1005CP12NGDG
CHIP IND 1005,12NH,G,24Q,0.64A,4
Datasheet0402 (1005 Metric)
44,199 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 nH Unshielded Wirewound Inductor 640 mA 120mOhm Max 0402 (1005 Metric)
WCI1005CP12NGDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WCI1005CP |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 12 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 640 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 120mOhm Max |
| Q @ Freq | 62 @ 900MHz |
| Frequency - Self Resonant | 3.6GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.025" W (1.19mm x 0.64mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCI1005CP18NGDG | WCI1005CP19NGDG | WCI1005CP20NGDG | WCI1005CP2N2CDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHIP IND 1005,18.0NH,G,25Q,0.42A | CHIP IND 1005,19.0NH,G,24Q,0.48A | CHIP IND 1005,20.0NH,G,25Q,0.42A | CHIP IND 1005,2.2NH,C,19Q,0.96A, |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
