WCI1005CP18NGDG

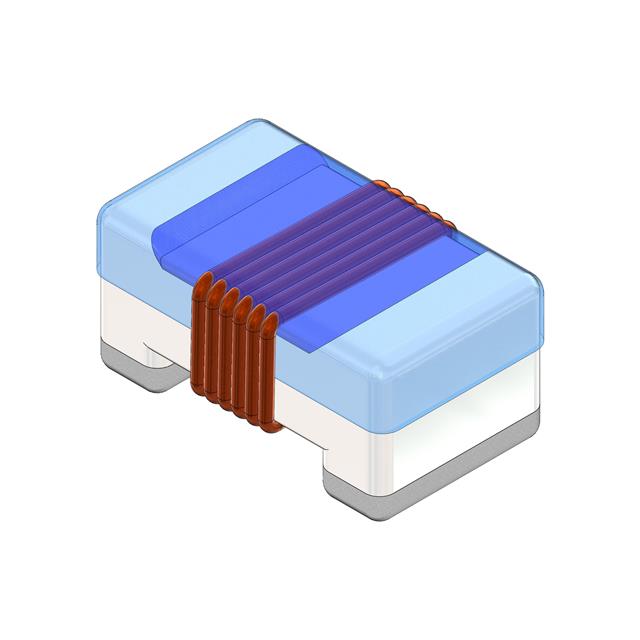

lmages are for reference only.WCI1005CP18NGDG
CHIP IND 1005,18.0NH,G,25Q,0.42A
Datasheet0402 (1005 Metric)
42,668 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
18 nH Unshielded Wirewound Inductor 420 mA 230mOhm Max 0402 (1005 Metric)
WCI1005CP18NGDG
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | INPAQ Technology Co., Ltd |
| Series | WCI1005CP |
| Packaging | Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Type | Wirewound |
| Material - Core | Ceramic |
| Inductance | 18 nH |
| Tolerance | ±2% |
| Current Rating (Amps) | 420 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 230mOhm Max |
| Q @ Freq | 52 @ 900MHz |
| Frequency - Self Resonant | 3.1GHz |
| Ratings | - |
| Operating Temperature | -25°C ~ 125°C |
| Inductance Frequency - Test | 250 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0402 (1005 Metric) |
| Supplier Device Package | 0402 |
| Size / Dimension | 0.047" L x 0.025" W (1.19mm x 0.64mm) |
| Height - Seated (Max) | 0.026" (0.66mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | WCI1005CP12NGDG | WCI1005CP19NGDG | WCI1005CP20NGDG | WCI1005CP2N2CDG |
| Manufacturer | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CHIP IND 1005,12NH,G,24Q,0.64A,4 | CHIP IND 1005,19.0NH,G,24Q,0.48A | CHIP IND 1005,20.0NH,G,25Q,0.42A | CHIP IND 1005,2.2NH,C,19Q,0.96A, |
| Series | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd | INPAQ Technology Co., Ltd |
| Packaging | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) | Cut Tape (CT) |
