Product CatalogPart Number
WNSC201200CWQ
Manufacturer
WeEn SemiconductorsDescription
DIODE SIL CARB 1.2KV 20A TO247-3
Datasheet
DatasheetPackage
TO-247-3
In Stock
71,249 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
WNSC201200CWQ
WNSC201200CWQ
lmages are for reference only.Payment Methods
Delivery Services
Diode 1200 V 20A Through Hole TO-247-3
Quick Inquiry
WNSC201200CWQ
Specifications
| Category | Discrete Semiconductor Products - Diodes - Rectifiers |
| Manufacturer | WeEn Semiconductors |
| Series | - |
| Packaging | Tube |
| RoHS Status | RoHS Compliant |
| Technology | SiC (Silicon Carbide) Schottky |
| Voltage - DC Reverse (Vr) (Max) | 1200 V |
| Current - Average Rectified (Io) | 20A |
| Voltage - Forward (Vf) (Max) @ If | 1.6 V @ 10 A |
| Speed | No Recovery Time > 500mA (Io) |
| Reverse Recovery Time (trr) | 0 ns |
| Current - Reverse Leakage @ Vr | 110 µA @ 1200 V |
| Capacitance @ Vr, F | 510pF @ 1V, 1MHz |
| Mounting Type | Through Hole |
| Package / Case | TO-247-3 |
| Supplier Device Package | TO-247-3 |
| Operating Temperature - Junction | 175°C (Max) |
| Base Product Number | WNSC2 |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute | |
 |
 |
 |
| Part Number | WNSC201200WQ | WNSC021200Q | WNSC04650T6J | WNSC051200Q |
| Manufacturer | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors | WeEn Semiconductors |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |

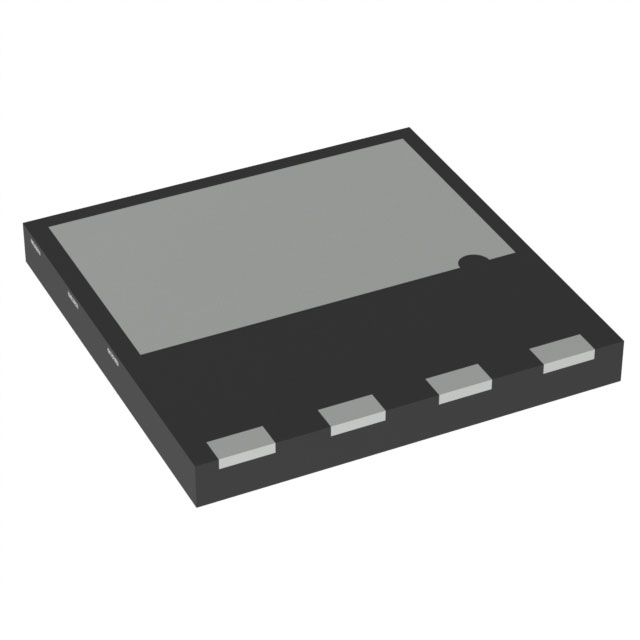

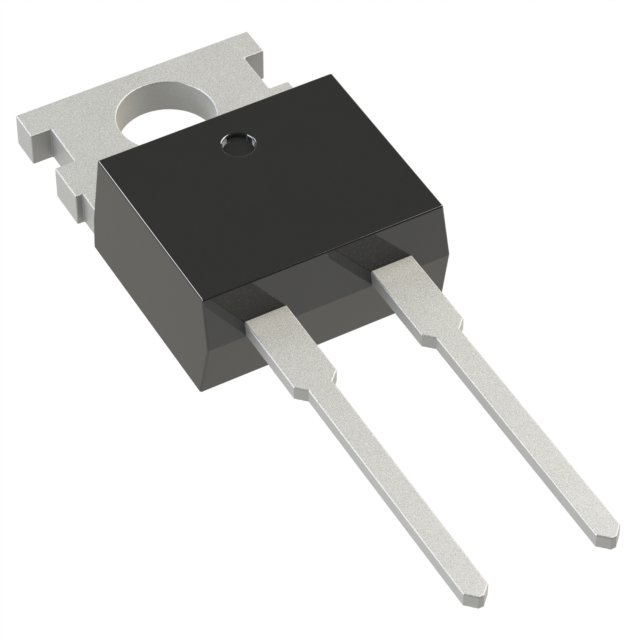

| Description | DIODE SIL CARB 1.2KV 20A TO247-2 | DIODE SIL CARB 1.2KV 2A TO220AC | DIODE SIL CARBIDE 650V 4A 5DFN | DIODE SIL CARB 1.2KV 5A TO220AC |
| Series | - | - | - | - |
| Packaging | Tube | Tube | Tape & Reel (TR) | Tube |
