WTX0420TR33MTR01
lmages are for reference only.WTX0420TR33MTR01
FIXED IND 0.3320%UH 0.003OHM 181
Datasheet1616 (4040 Metric)
14,627 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
330 nH Unshielded Wirewound Inductor 19.9 A 3.2mOhm Max 1616 (4040 Metric)
WTX0420TR33MTR01
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. |
| Series | WT |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | |
| Type | Wirewound |
| Material - Core | - |
| Inductance | 330 nH |
| Tolerance | ±20% |
| Current Rating (Amps) | 19.9 A |
| Current - Saturation (Isat) | 15.7A |
| Shielding | Unshielded |
| DC Resistance (DCR) | 3.2mOhm Max |
| Q @ Freq | - |
| Frequency - Self Resonant | 79MHz |
| Ratings | - |
| Operating Temperature | -55°C ~ 155°C |
| Inductance Frequency - Test | 1 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 1616 (4040 Metric) |
| Supplier Device Package | 1616 |
| Size / Dimension | 0.157" L x 0.157" W (4.00mm x 4.00mm) |
| Height - Seated (Max) | 0.083" (2.10mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

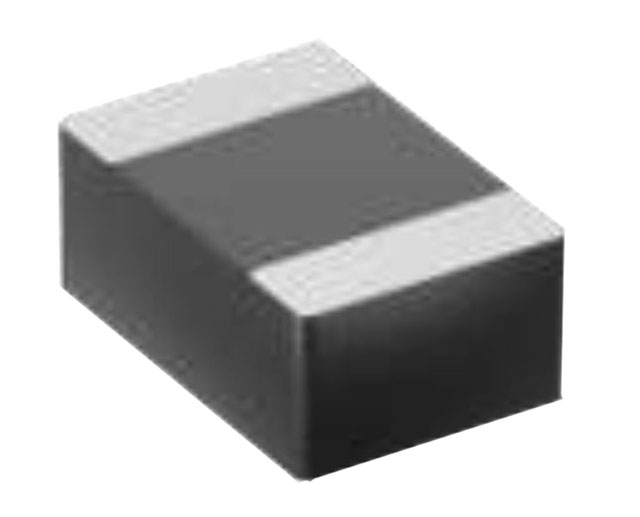

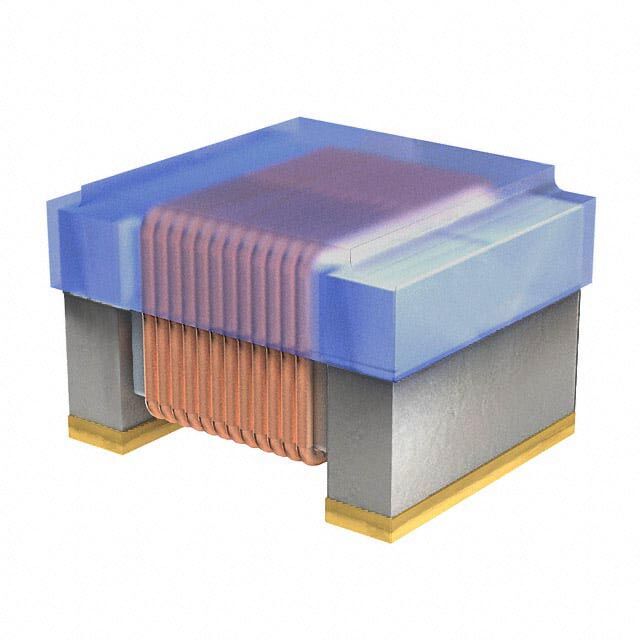

| Part Number | WTX0420T3R3MTR01 | WTX0420TR47MTR01 | WB1008TR47SJ | WCI1005CP12NGDG |
| Manufacturer | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Cal-Chip Electronics, Inc. | INPAQ Technology Co., Ltd |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | FIXED IND 3.320%UH 0.026OHM 5400 | FIXED IND 0.4720%UH 0.005OHM 115 | WW IND 1008 470NH 5% | CHIP IND 1005,12NH,G,24Q,0.64A,4 |
| Series | Shenzhen Sunlord Electronics Co., Ltd. | Shenzhen Sunlord Electronics Co., Ltd. | Cal-Chip Electronics, Inc. | INPAQ Technology Co., Ltd |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Cut Tape (CT) |
