XDMYK20C-1
lmages are for reference only.Payment Methods
Delivery Services
Display Modules - LED Character and Numeric Yellow 7-Segment 1 Character Common Cathode 1.95V 10mA 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) 18-DIP (0.600", 15.24mm), 13 Leads
XDMYK20C-1
| Category | Optoelectronics - LED Character and Numeric - |
| Manufacturer | SunLED |
| Series | - |
| Packaging | Tube |
| RoHS Status | ROHS3 Compliant |
| Number of Characters | 1 |
| Size / Dimension | 0.984" H x 0.732" W x 0.417" D (25.00mm x 18.60mm x 10.60mm) |
| Digit/Alpha Size | 0.80" (20.32mm) |
| Display Type | 7-Segment |
| Common Pin | Common Cathode |
| Color | Yellow |
| Voltage - Forward (Vf) (Typ) | 1.95V |
| Current - Test | 10mA |
| Millicandela Rating | 42mcd |
| Wavelength - Peak | 590nm |
| Power Dissipation (Max) | 75mW |
| Package / Case | 18-DIP (0.600", 15.24mm), 13 Leads |
| Base Product Number | XDMYK20 |
| Display Format | - |
| Product Attribute |  |
 |
 |
 |

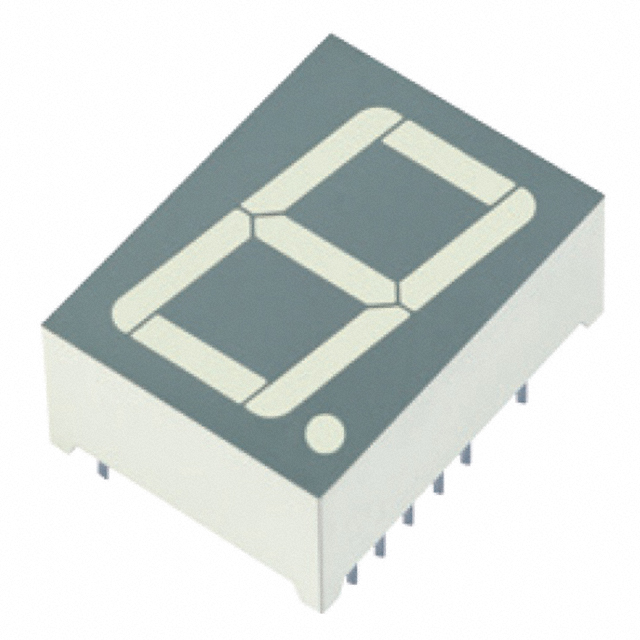

| Part Number | XDMYK20A-1 | XDMYK100A | XDMYK100C | XDMYK14A |
| Manufacturer | SunLED | SunLED | SunLED | SunLED |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |

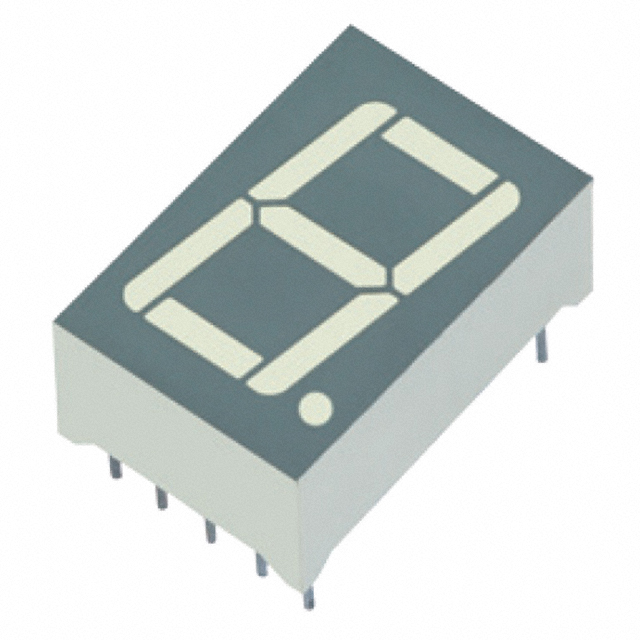

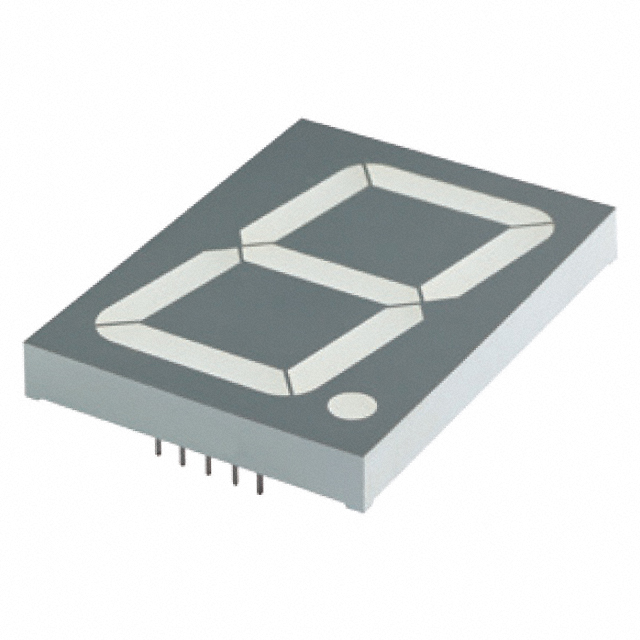

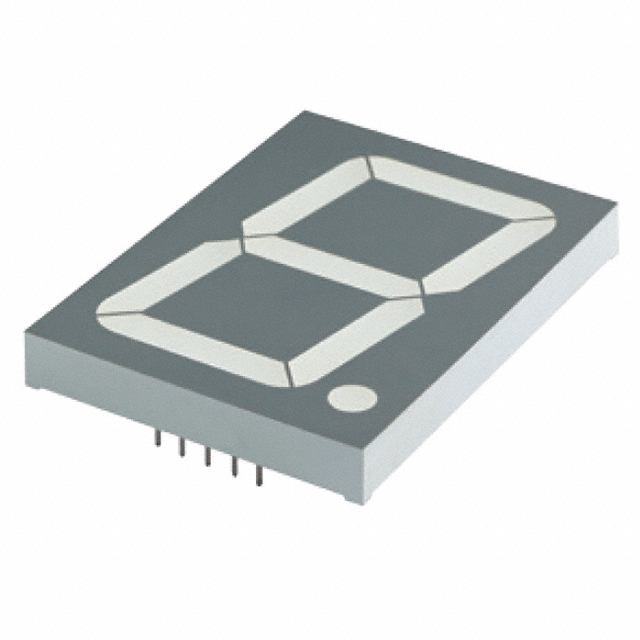

| Description | DISPLAY 7-SEG 0.8" SGL YLW 16DIP | DISPLAY 7SEG 3.98" SGL YLW 10DIP | DISPLAY 7SEG 3.98" SGL YLW 10DIP | DISPLAY 7SEG 0.56" SGL YLW 10DIP |
| Series | - | - | - | - |
| Packaging | Tube | Box | Box | Tube |
