Y14870R01200B9R
lmages are for reference only.Y14870R01200B9R
RES 0.012 OHM 0.1% 1W 2512
Datasheet2512 (6432 Metric)
98,612 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
12 mOhms ±0.1% 1W Chip Resistor 2512 (6432 Metric) Current Sense, Moisture Resistant Metal Foil
Y14870R01200B9R
| Category | Resistors - Chip Resistor Surface Mount - |
| Manufacturer | VPG Foil Resistors |
| Series | CSM |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Resistance | 12 mOhms |
| Tolerance | ±0.1% |
| Power (Watts) | 1W |
| Composition | Metal Foil |
| Features | Current Sense, Moisture Resistant |
| Temperature Coefficient | ±15ppm/°C |
| Operating Temperature | -65°C ~ 170°C |
| Package / Case | 2512 (6432 Metric) |
| Supplier Device Package | - |
| Ratings | - |
| Size / Dimension | 0.250" L x 0.125" W (6.35mm x 3.18mm) |
| Height - Seated (Max) | 0.035" (0.89mm) |
| Number of Terminations | 4 |
| Failure Rate | - |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

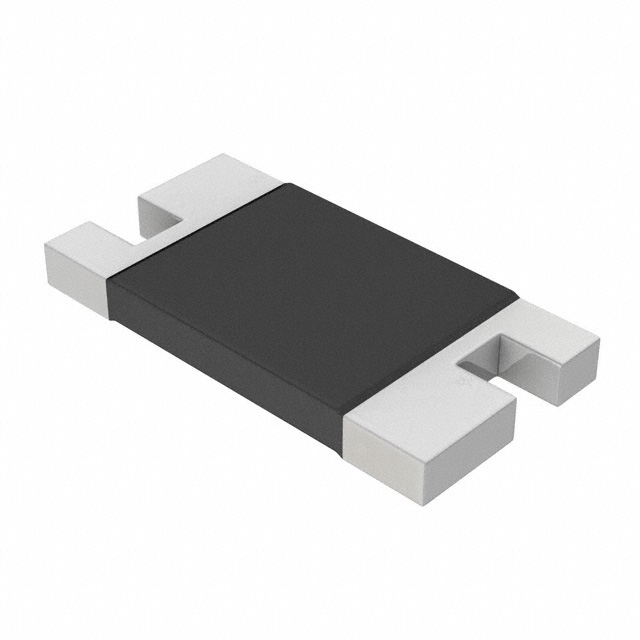

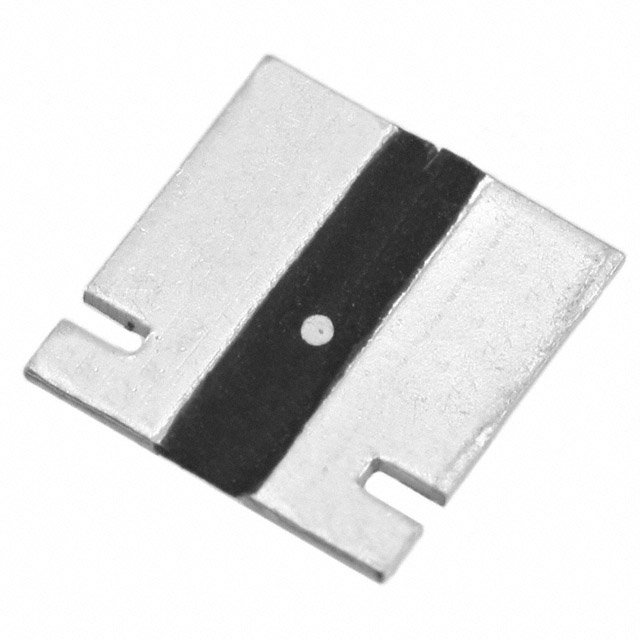

| Part Number | Y14870R01200B9W | Y14870R01000B0R | Y14870R01000B0W | Y14870R01000B80R |
| Manufacturer | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| RoHS Status | ROHS3 Compliant | RoHS non-compliant | RoHS non-compliant | RoHS non-compliant |
| Description | RES 0.012 OHM 0.1% 1W 2512 | RES 0.01 OHM 0.1% 1W 2512 | RES 0.01 OHM 0.1% 1W 2512 | CSM2512L 0R0100 0.1% B T 35 PPM/ |
| Series | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors | VPG Foil Resistors |
| Packaging | Tray | Tape & Reel (TR)-->Cut Tape (CT) | Tray | Tape & Reel (TR) |
