ZMY91-GS18
lmages are for reference only.ZMY91-GS18
DIODE ZENER 91V 1W DO213AB
DatasheetDO-213AB, MELF (Glass)
26,076 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Zener Diode 91 V 1 W ±5% Surface Mount DO-213AB
ZMY91-GS18
| Category | Discrete Semiconductor Products - Diodes - Zener |
| Manufacturer | Vishay General Semiconductor - Diodes Division |
| Series | - |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| Voltage - Zener (Nom) (Vz) | 91 V |
| Tolerance | ±5% |
| Power - Max | 1 W |
| Impedance (Max) (Zzt) | 250 Ohms |
| Current - Reverse Leakage @ Vr | 500 nA @ 68 V |
| Voltage - Forward (Vf) (Max) @ If | - |
| Operating Temperature | 175°C |
| Grade | Automotive |
| Qualification | AEC-Q101 |
| Mounting Type | Surface Mount |
| Package / Case | DO-213AB, MELF (Glass) |
| Supplier Device Package | DO-213AB |
| Base Product Number | ZMY91 |
| Product Attribute |  |
 |
 |
 |

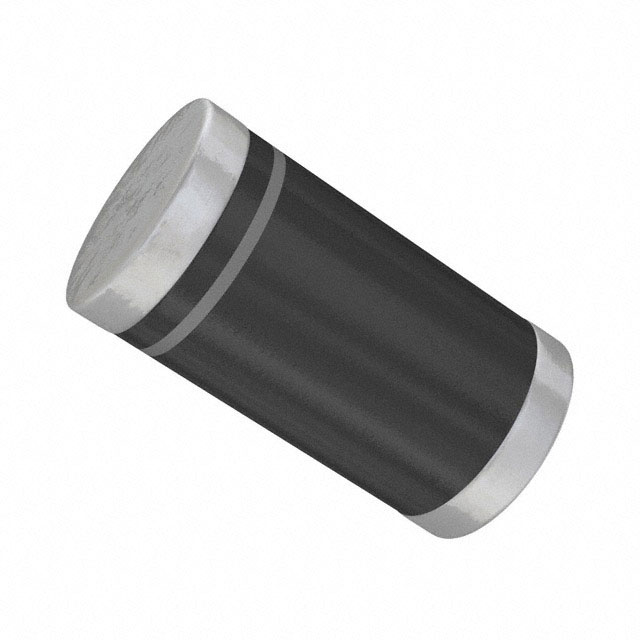

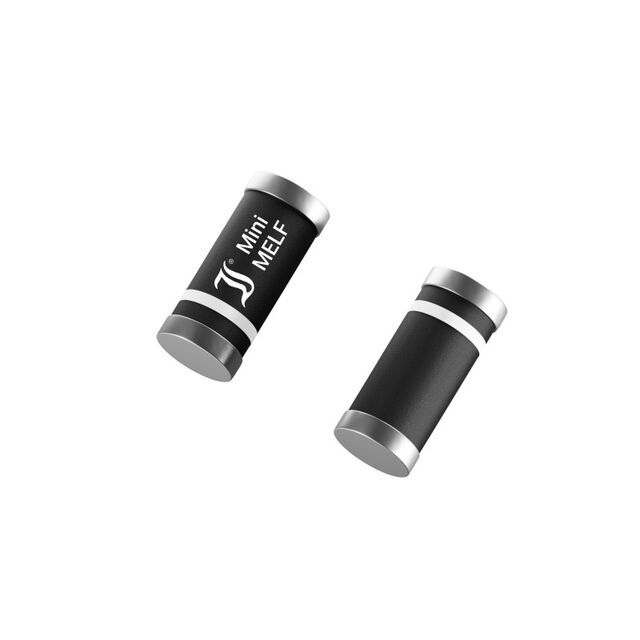

| Part Number | ZMY91-GS08 | ZMY9.1G | ZMY91 | ZMY9V1-GS08 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Diotec Semiconductor | Diotec Semiconductor | Vishay General Semiconductor - Diodes Division |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | DIODE ZENER 91V 1W DO213AB | DIODE ZENER 9.05V 1W DO213AB | DIODE ZENER 91V 1.3W DO213AB | DIODE ZENER 9.1V 1W DO213AB |
| Series | - | - | - | - |
| Packaging | Tape & Reel (TR) | Bulk | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
