ZTB800J
lmages are for reference only.Payment Methods
Delivery Services
800 kHz Ceramic Resonator ±0.3% -20°C ~ 80°C Through Hole
ZTB800J
| Category | Crystals, Oscillators, Resonators - Resonators - |
| Manufacturer | ECS Inc. |
| Series | ZTB |
| Packaging | Bulk |
| RoHS Status | |
| Type | Ceramic |
| Frequency | 800 kHz |
| Frequency Stability | ±0.3% |
| Frequency Tolerance | ±0.5% |
| Features | - |
| Capacitance | - |
| Impedance | - |
| Operating Temperature | -20°C ~ 80°C |
| Mounting Type | Through Hole |
| Package / Case | Radial, Box - 2 Lead, 2.50mm Pitch |
| Size / Dimension | 0.197" L x 0.087" W (5.00mm x 2.20mm) |
| Height | 0.236" (6.00mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |

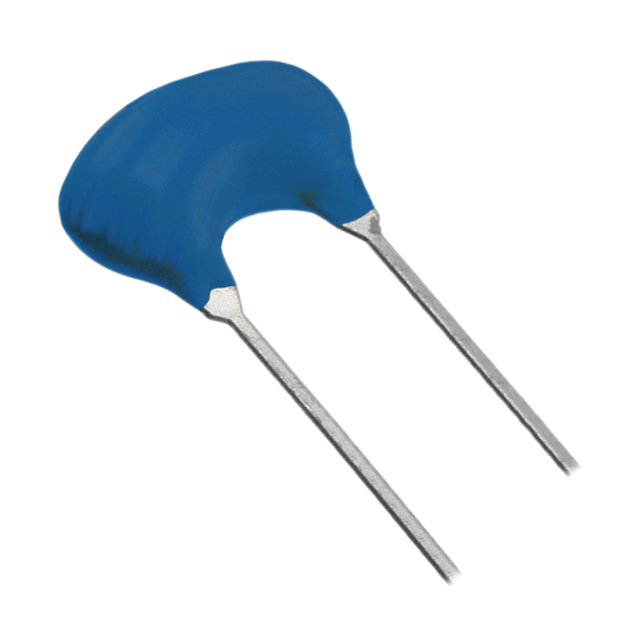

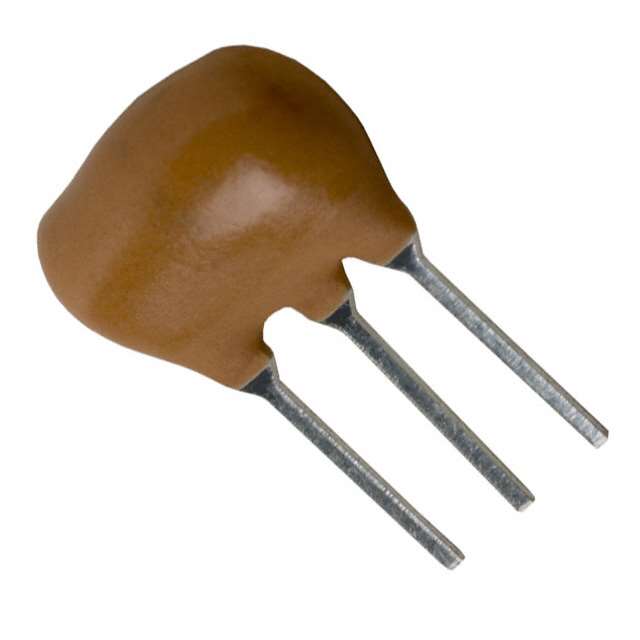

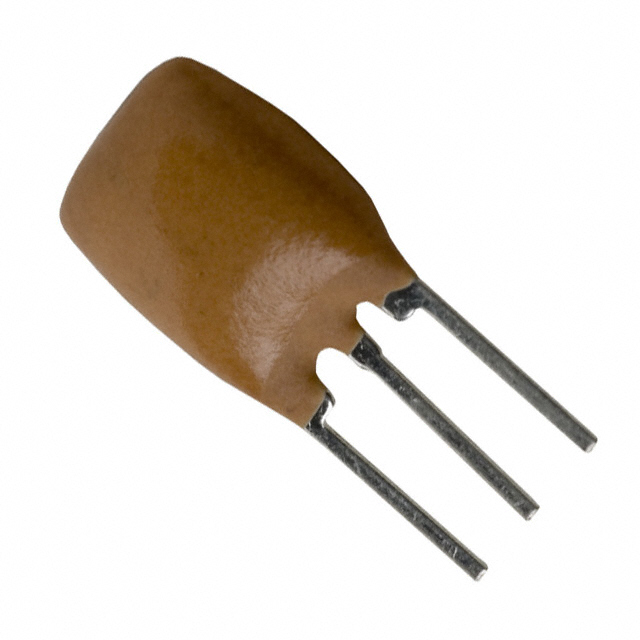

| Part Number | ZTA-6.00MG | ZTA-2.00MG | ZTT-6.00MG | ZTT-20.00MX |
| Manufacturer | ECS Inc. | ECS Inc. | ECS Inc. | ECS Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | CERAMIC RES 6.0000MHZ T/H | CERAMIC RES 2.0000MHZ T/H | CERAMIC RES 6.0000MHZ 30PF T/H | CERAMIC RES 20.0000MHZ 30PF T/H |
| Series | ZTA | ZTA | ZTT | ZTT |
| Packaging | Bulk | Bulk | Bulk | Bulk |
