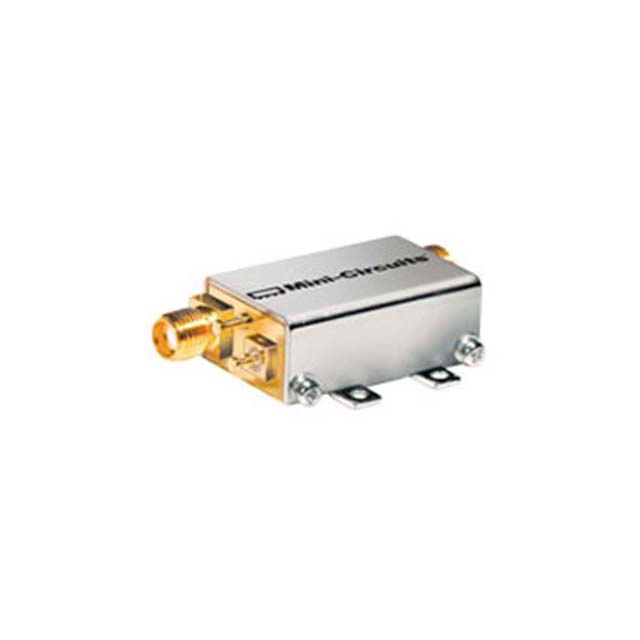

ZX60-2534MA-S+
lmages are for reference only.ZX60-2534MA-S+
IC AMP CELLULAR 500MHZ-2.5GHZ
DatasheetModule, SMA Connectors
92,898 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
RF Amplifier IC Cellular, PCN 500MHz ~ 2.5GHz
ZX60-2534MA-S+
| Category | RF and Wireless - RF Amplifiers - |
| Manufacturer | Mini-Circuits |
| Series | - |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency | 500MHz ~ 2.5GHz |
| P1dB | 19dBm |
| Gain | 39dB |
| Noise Figure | 2.6dB |
| RF Type | Cellular, PCN |
| Voltage - Supply | 2.8V ~ 5V |
| Current - Supply | 170mA |
| Test Frequency | 500MHz |
| Mounting Type | Chassis Mount |
| Package / Case | Module, SMA Connectors |
| Supplier Device Package | - |
| Base Product Number | ZX60 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |

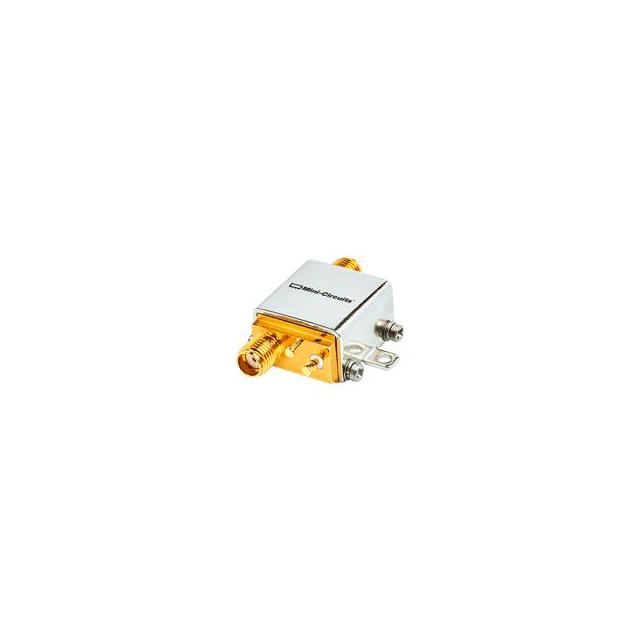

| Part Number | ZX60-2531MA-S+ | ZX60-02203LPN+ | ZX60-05113LN+ | ZX60-06183LN+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | IC AMP CELLULAR 500MHZ-2.5GHZ | COAXIAL AMP, 2000 - 20000 MHZ | IC RF AMP GPS 5GHZ-11GHZ SMA | IC RF AMP RADAR 6GHZ-18GHZ SMA |
| Series | - | - | - | - |
| Packaging | Tray | Tray | Tray | Tray |
