ZX75BS-160-S+

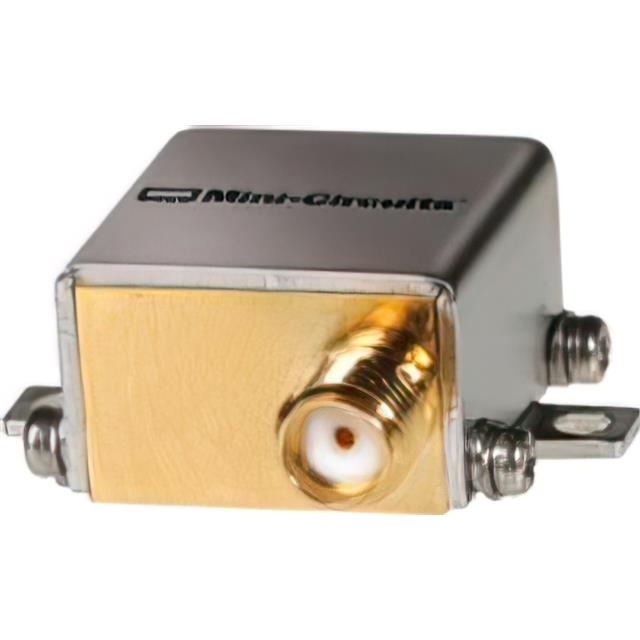

lmages are for reference only.ZX75BS-160-S+
RF FILTER BANDSTOP 320MHZ INLINE
DatasheetInline, SMA Connection, F and M
32,484 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
320MHz Center Frequency Band Stop RF Filter (Radio Frequency) 19.4MHz Bandwidth 1.5dB Inline, SMA Connection, F and M
ZX75BS-160-S+
| Category | Filters - RF Filters - |
| Manufacturer | Mini-Circuits |
| Series | ZX75BS |
| Packaging | Tray |
| RoHS Status | ROHS3 Compliant |
| Frequency | 320MHz Center |
| Bandwidth | 19.4MHz |
| Filter Type | Band Stop |
| Ripple | - |
| Insertion Loss | 1.5dB |
| Mounting Type | Free Hanging (In-Line) |
| Package / Case | Inline, SMA Connection, F and M |
| Size / Dimension | 0.740" L x 0.750" W (18.80mm x 19.05mm) |
| Height (Max) | 0.490" (12.45mm) |
| Base Product Number | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | ZX75BS-100-S+ | ZX75BS-125-S+ | ZX75BS-140-S+ | ZX75BS-5468-S+ |
| Manufacturer | Mini-Circuits | Mini-Circuits | Mini-Circuits | Mini-Circuits |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | RoHS Compliant | RoHS Compliant |
| Description | RF FILTER BANDSTOP 100MHZ INLINE | RF FILTER BANDSTOP 125MHZ INLINE | RF FILTER BANDSTOP 280MHZ INLINE | RF FILTER BAND STOP 14MHZ INLINE |
| Series | ZX75BS | ZX75BS | ZX75BS | ZX75BS |
| Packaging | Tray | Tray | Tray | Tray |
