1.5KE220-B

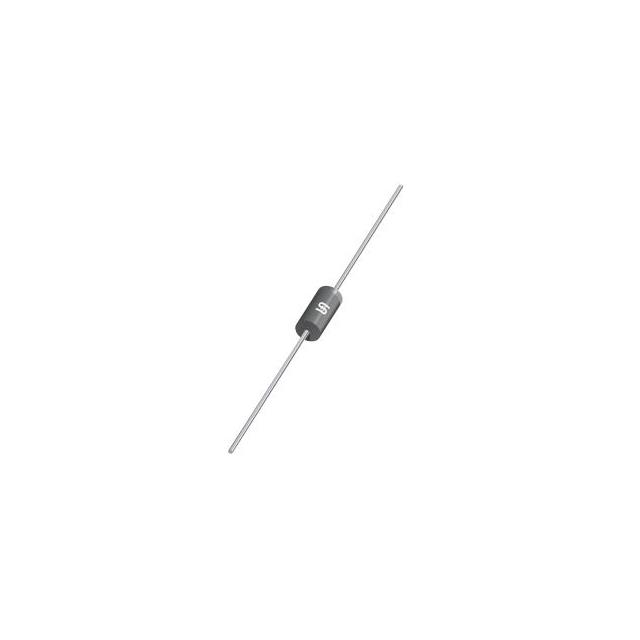

lmages are for reference only.1.5KE220-B
TVS DIODE 185VWM 344.4VC DO201
DatasheetDO-201AA, DO-27, Axial
77,491 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
344.4V Clamp 4.6A Ipp Tvs Diode Through Hole DO-201
1.5KE220-B
| Category | Circuit Protection - Transient Voltage Suppressors TVS - TVS Diodes |
| Manufacturer | Littelfuse Inc. |
| Series | 1.5KE |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Type | Zener |
| Bidirectional Channels | - |
| Voltage - Reverse Standoff (Typ) | 185V |
| Voltage - Breakdown (Min) | 198V |
| Voltage - Clamping (Max) @ Ipp | 344.4V |
| Current - Peak Pulse (10/1000µs) | 4.6A |
| Power - Peak Pulse | 1500W (1.5kW) |
| Power Line Protection | No |
| Applications | General Purpose |
| Capacitance @ Frequency | - |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Through Hole |
| Package / Case | DO-201AA, DO-27, Axial |
| Supplier Device Package | DO-201 |
| Base Product Number | 1.5KE |
| Unidirectional Channels | 1 |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|
| Part Number | 1.5KE220-E3/54 | 1.5KE220-E3/73 | 1.5KE22 | 1.5KE22 |
| Manufacturer | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TVS DIODE 175VWM 344VC 1.5KE | TVS DIODE 175VWM 344VC 1.5KE | TVS D5.4X7.5 17.8V 1500W UNIDIR | 1500W, 22V, 10%, UNIDIRECTIONAL, |
| Series | Vishay General Semiconductor - Diodes Division | Vishay General Semiconductor - Diodes Division | Littelfuse Inc. | Taiwan Semiconductor Corporation |
| Packaging | Tape & Reel (TR) | Tape & Box (TB) | Tape & Reel (TR) | Tape & Reel (TR) |
