8020.5065.G

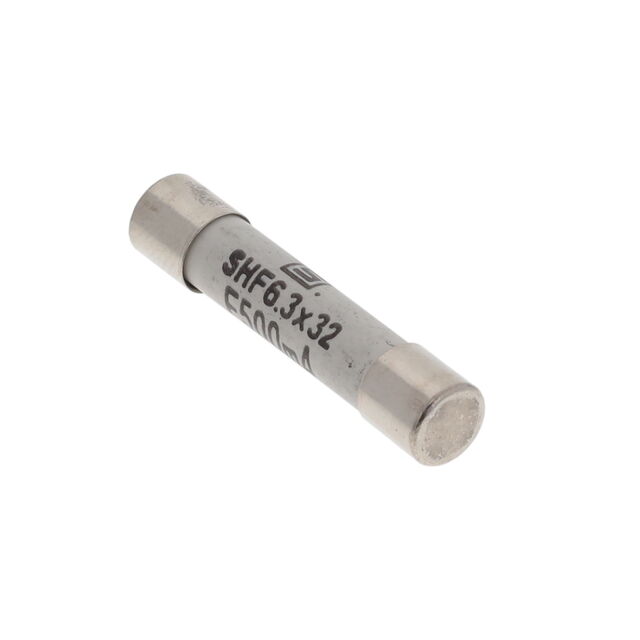

lmages are for reference only.8020.5065.G
FUSE CERM 500MA 500VAC/VDC 3AB
Datasheet3AB, 3AG, 1/4" x 1-1/4"
91,373 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
500 mA 500 V AC 500 V DC Fuse Cartridge, Ceramic Requires Holder 3AB, 3AG, 1/4" x 1-1/4"
8020.5065.G
| Category | Circuit Protection - Fuses - |
| Manufacturer | SCHURTER Inc. |
| Series | SHF 6.3x32 |
| Packaging | Bulk |
| RoHS Status | ROHS3 Compliant |
| Mounting Type | Requires Holder |
| Fuse Type | Cartridge, Ceramic |
| Current Rating (Amps) | 500 mA |
| Voltage Rating - AC | 500 V |
| Voltage Rating - DC | 500 V |
| Response Time | Fast Blow |
| Package / Case | 3AB, 3AG, 1/4" x 1-1/4" |
| Breaking Capacity @ Rated Voltage | 1.5kA |
| Melting I²t | 0.14 |
| Approval Agency | cURus |
| Operating Temperature | -40°C ~ 85°C |
| Color | - |
| Size / Dimension | 0.250" Dia x 1.252" L (6.35mm x 31.80mm) |
| Base Product Number | - |
| DC Cold Resistance | - |
| Product Attribute |  |
|
 |
|

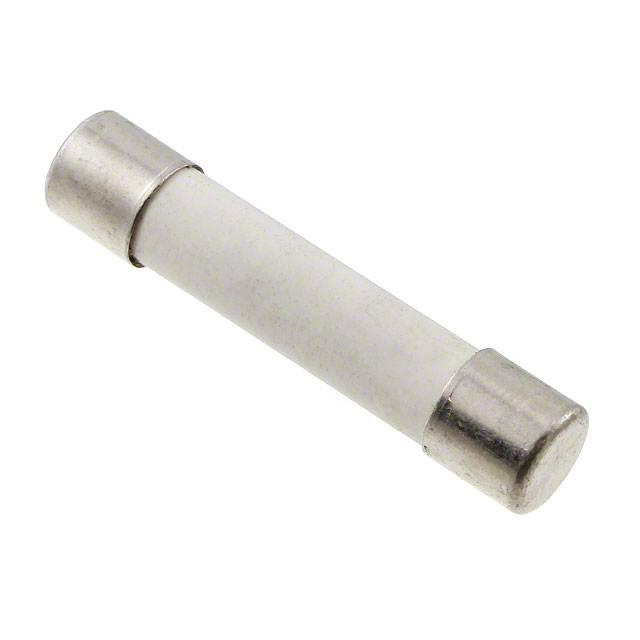

| Part Number | 8020.5065 | 8020.5066 | 8020.5066.G | 8020.5067 |
| Manufacturer | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FUSE CERM 500MA 500VAC/VDC 3AB | FUSE CERM 630MA 500VAC/VDC 3AB | FUSE CERM 630MA 500VAC/VDC 3AB | FUSE CERM 800MA 500VAC/VDC 3AB |
| Series | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. | SCHURTER Inc. |
| Packaging | Bulk | Bulk | Bulk | Bulk |
