APC-3052
lmages are for reference only.APC-3052
SOP4, DC INPUT, RANDOM-PHASE PHO
Datasheet4-SMD, Gull Wing
66,582 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
Optoisolator Triac Output 3750Vrms 1 Channel 4-SOP
APC-3052
| Category | Isolators - Optoisolators - Triac-SCR Output Optoisolators |
| Manufacturer | American Bright Optoelectronics Corporation |
| Series | APC-305X |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT)--> |
| RoHS Status | ROHS3 Compliant |
| Output Type | Triac |
| Zero Crossing Circuit | No |
| Number of Channels | 1 |
| Voltage - Isolation | 3750Vrms |
| Voltage - Off State | 600 V |
| Static dV/dt (Min) | 1kV/µs |
| Current - LED Trigger (Ift) (Max) | 10mA |
| Current - Hold (Ih) | 257µA |
| Turn On Time | - |
| Voltage - Forward (Vf) (Typ) | 1.24V |
| Current - DC Forward (If) (Max) | 60 mA |
| Operating Temperature | -40°C ~ 100°C |
| Mounting Type | Surface Mount |
| Package / Case | 4-SMD, Gull Wing |
| Supplier Device Package | 4-SOP |
| Approval Agency | CQC, CSA, cUL, UL, VDE |
| Base Product Number | APC-30 |
| Current - On State (It (RMS)) (Max) | - |
| Product Attribute |  |
 |
 |
 |

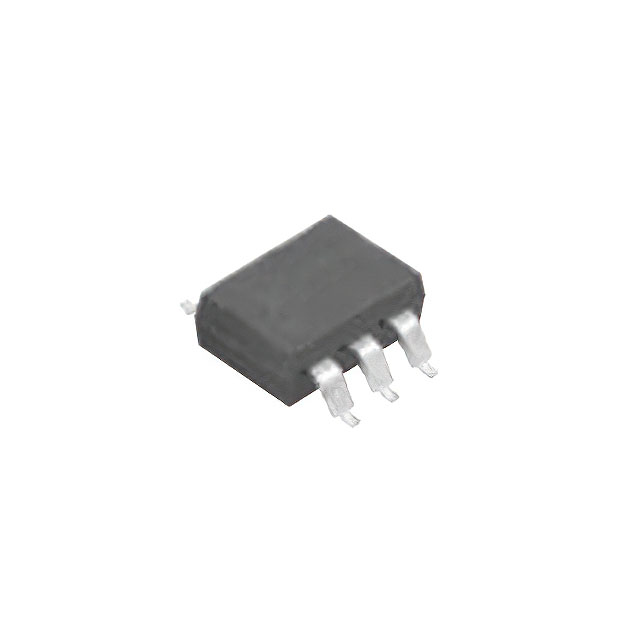

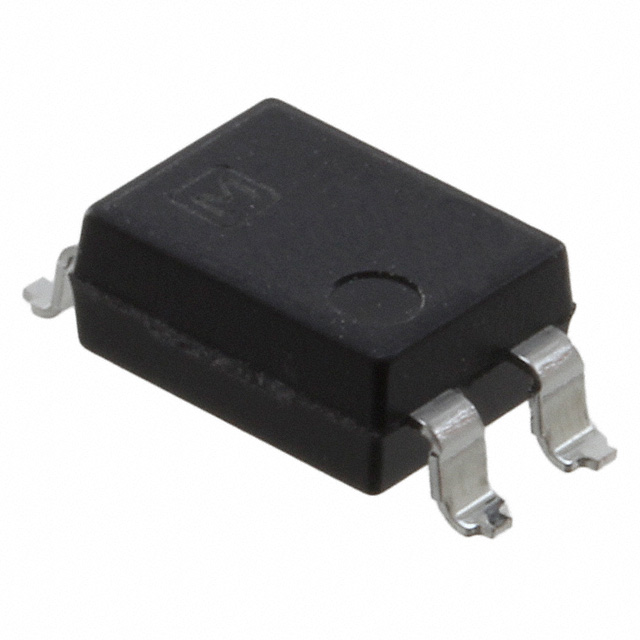

| Part Number | APT1211A | APT1222WAY | APT1231A | APT1221AX |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| RoHS Status | ROHS3 Compliant | RoHS Compliant | RoHS Compliant | |
| Description | OPTOISOLATOR 5KV TRIAC 4SMD | OPTOISOLATOR 5KV TRIAC 6DIP | PHOTOTRIAC COUPLER 600V 4DIP | OPTOISOLATOR 5KV TRIAC 4DIP |
| Series | APT | APT | APT | APT |
| Packaging | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> | Tube | Tape & Reel (TR)-->Cut Tape (CT)--> |
