ATFC-0201HQ-4N0B-T

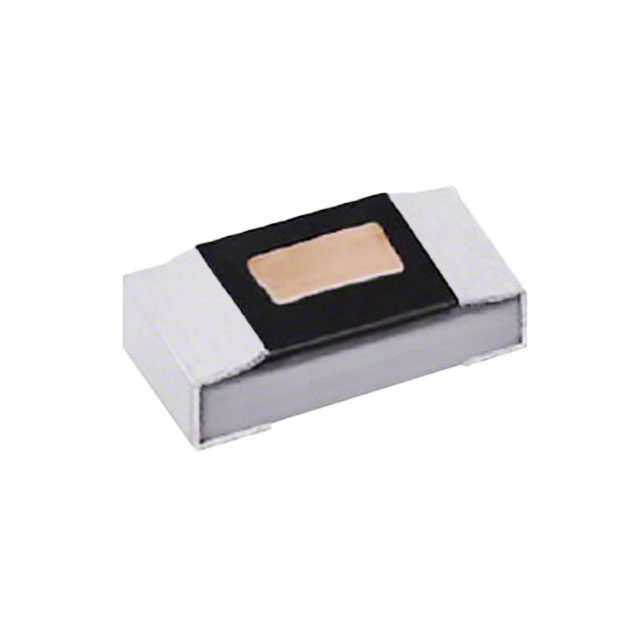

lmages are for reference only.ATFC-0201HQ-4N0B-T
FIXED IND 4NH 350MA 400 MOHM SMD
Datasheet0201 (0603 Metric)
91,316 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
4 nH Unshielded Thin Film Inductor 350 mA 400mOhm Max 0201 (0603 Metric)
ATFC-0201HQ-4N0B-T
| Category | Inductors, Coils, Chokes - Fixed Inductors - |
| Manufacturer | Abracon LLC |
| Series | ATFC-0201HQ |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| Type | Thin Film |
| Material - Core | Ceramic |
| Inductance | 4 nH |
| Tolerance | ±0.1nH |
| Current Rating (Amps) | 350 mA |
| Current - Saturation (Isat) | - |
| Shielding | Unshielded |
| DC Resistance (DCR) | 400mOhm Max |
| Q @ Freq | 14 @ 500MHz |
| Frequency - Self Resonant | 6GHz |
| Ratings | - |
| Operating Temperature | -40°C ~ 85°C |
| Inductance Frequency - Test | 500 MHz |
| Features | - |
| Mounting Type | Surface Mount |
| Package / Case | 0201 (0603 Metric) |
| Supplier Device Package | 0201 (0603 Metric) |
| Size / Dimension | 0.024" L x 0.012" W (0.60mm x 0.30mm) |
| Height - Seated (Max) | 0.011" (0.28mm) |
| Base Product Number | - |
| Product Attribute | |
 |
 |
 |
| Part Number | ATFC-0201HQ-4N0B-T | ATFC-0201HQ-0N1B-T | ATFC-0201HQ-0N2B-T | ATFC-0201HQ-0N3B-T |
| Manufacturer | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | FIXED IND 4NH 350MA 400 MOHM SMD | FIXED IND 0.1NH 850MA 50MOHM SMD | FIXED IND 0.2NH 800MA 50MOHM SMD | FIXED IND 0.3NH 800MA 50MOHM SMD |
| Series | Abracon LLC | Abracon LLC | Abracon LLC | Abracon LLC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
