AUIRF7675M2TR
lmages are for reference only.AUIRF7675M2TR
AUIRF7675M2 - 120V-300V N-CHANNE
DatasheetDirectFET™ Isometric M2
62,558 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 150 V 4.4A (Ta), 18A (Tc) 2.7W (Ta), 45W (Tc) Surface Mount DirectFET™ Isometric M2
AUIRF7675M2TR
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | International Rectifier |
| Series | HEXFET® |
| Packaging | Bulk |
| RoHS Status | |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 150 V |
| Current - Continuous Drain (Id) @ 25°C | 4.4A (Ta), 18A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 10V |
| Rds On (Max) @ Id, Vgs | 56mOhm @ 11A, 10V |
| Vgs(th) (Max) @ Id | 5V @ 100µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1360 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.7W (Ta), 45W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | DirectFET™ Isometric M2 |
| Package / Case | DirectFET™ Isometric M2 |
| Base Product Number | - |
| Gate Charge (Qg) (Max) @ Vgs | 32 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
 |
 |
 |

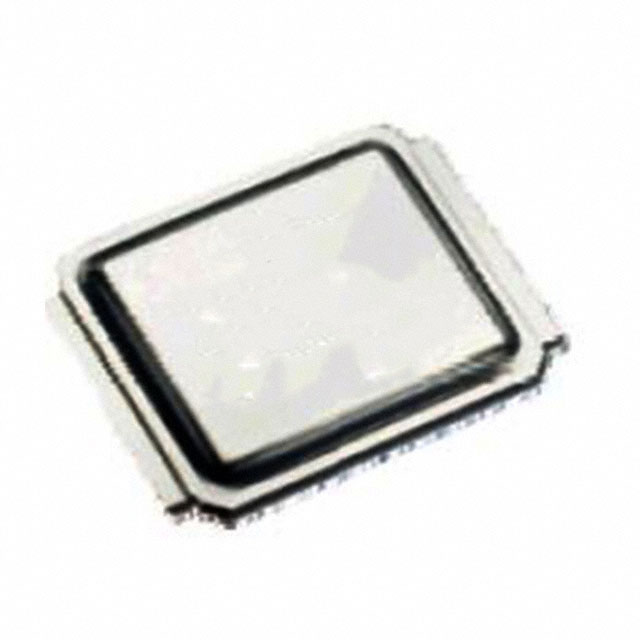

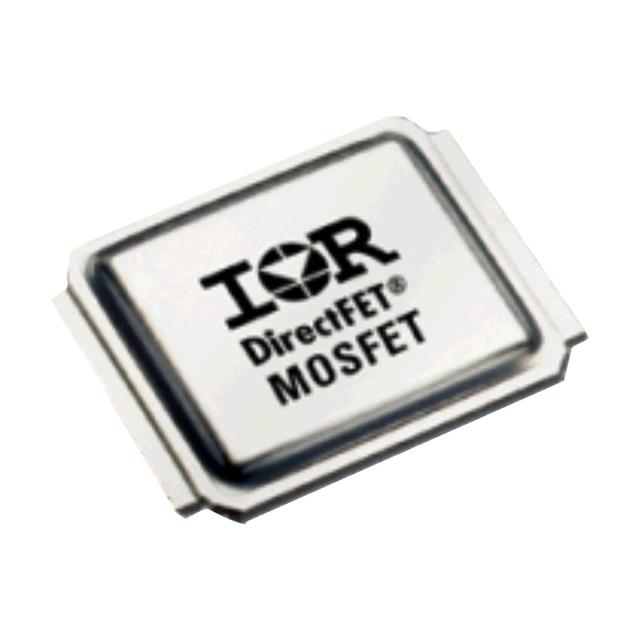

| Part Number | AUIRF7675M2TR | AUIRF7640S2TR | AUIRF7647S2TR | AUIRF7648M2TR |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | MOSFET N-CH 150V 4.4A DIRECTFET | MOSFET N-CH 60V 5.8A DIRECTFET | MOSFET N-CH 100V 5.9A DIRECTFET | MOSFET N-CH 60V 14A DIRECTFET |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
