AUIRLS8409-7TRL

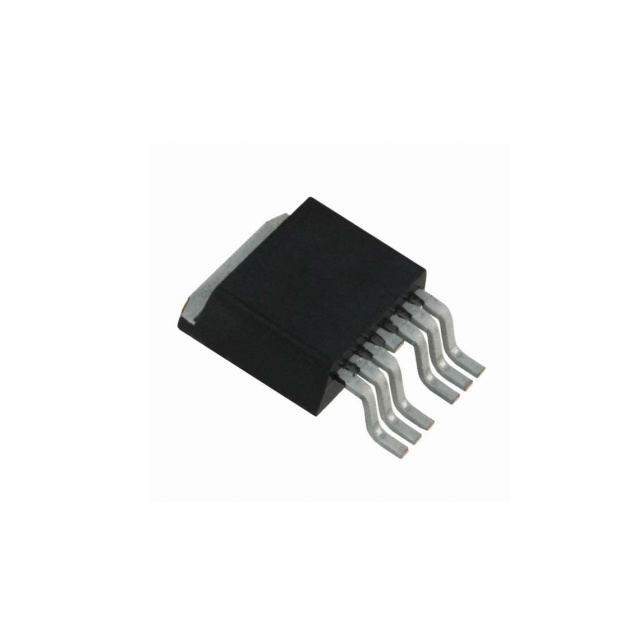

lmages are for reference only.AUIRLS8409-7TRL
MOSFET N-CH 40V 240A D2PAK
DatasheetTO-263-7, D2PAK (6 Leads + Tab)
72,468 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 40 V 240A (Tc) 375W (Tc) Surface Mount PG-TO263-7
AUIRLS8409-7TRL
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | HEXFET® |
| Packaging | Tape & Reel (TR) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 40 V |
| Current - Continuous Drain (Id) @ 25°C | 240A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 0.75mOhm @ 100A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 250µA |
| Vgs (Max) | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds | 16488 pF @ 25 V |
| FET Feature | - |
| Power Dissipation (Max) | 375W (Tc) |
| Operating Temperature | -55°C ~ 175°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TO263-7 |
| Package / Case | TO-263-7, D2PAK (6 Leads + Tab) |
| Base Product Number | AUIRLS8409 |
| Gate Charge (Qg) (Max) @ Vgs | 266 nC @ 4.5 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | AUIRLS8409-7P | AUIRL1404S | AUIRL1404S | AUIRL1404STRL |
| Manufacturer | Infineon Technologies | International Rectifier | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ||
| Description | MOSFET N-CH 40V 240A D2PAK | PFET, 160A I(D), 40V, 0.004OHM, | MOSFET N-CH 40V 160A DPAK | MOSFET N-CH 40V 160A DPAK |
| Series | HEXFET® | HEXFET® | HEXFET® | HEXFET® |
| Packaging | Tube | Bulk | Tube | Tape & Reel (TR) |
