BSC0302LSATMA1

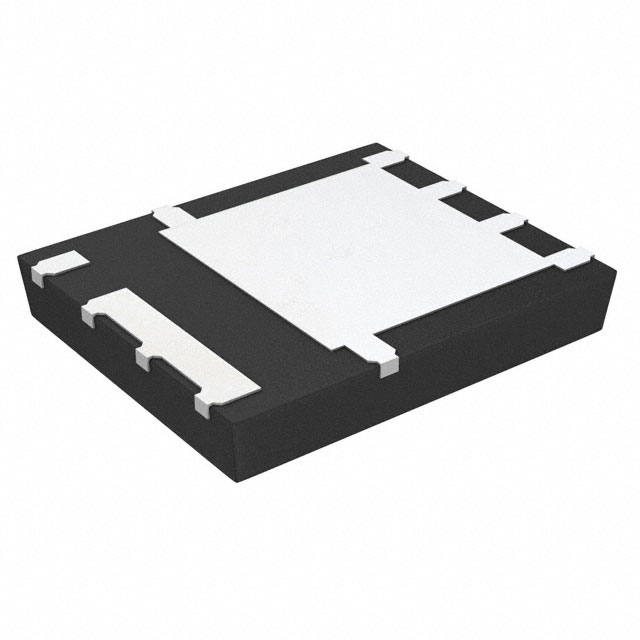

lmages are for reference only.BSC0302LSATMA1
MOSFET N-CH 120V 12A/99A TDSON
Datasheet8-PowerTDFN
28,953 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 120 V 12A (Ta), 99A (Tc) 156W (Tc) Surface Mount PG-TDSON-8-7
BSC0302LSATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ 2 |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 120 V |
| Current - Continuous Drain (Id) @ 25°C | 12A (Ta), 99A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 8mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 2.4V @ 112µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 7400 pF @ 60 V |
| FET Feature | - |
| Power Dissipation (Max) | 156W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-7 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC0302 |
| Gate Charge (Qg) (Max) @ Vgs | 79 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute | |
|
 |
|
| Part Number | BSC004NE2LS5ATMA1 | BSC005N03LS5ATMA1 | BSC005N03LS5IATMA1 | BSC007N04LS6ATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRENCH <= 40V | TRENCH <= 40V | TRENCH <= 40V | MOSFET N-CH 40V 100A TDSON-8-6 |
| Series | OptiMOS™ | OptiMOS™ | - | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
