BSC032NE2LSATMA1

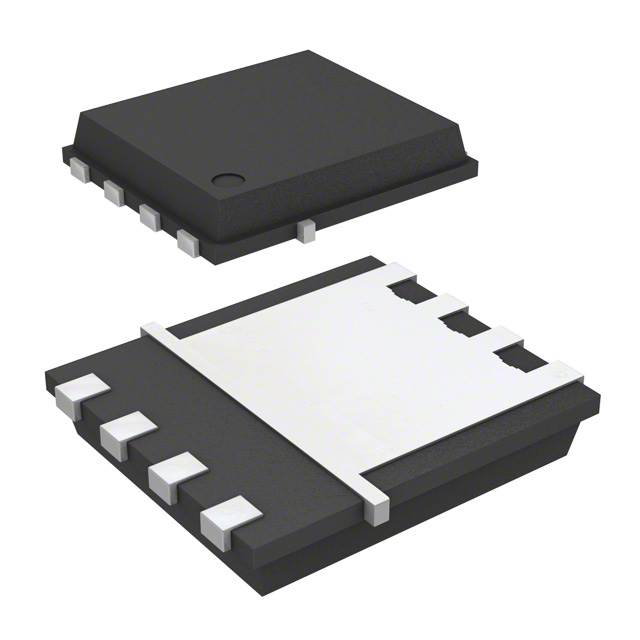

lmages are for reference only.BSC032NE2LSATMA1
MOSFET N-CH 25V 22A/84A TDSON
Datasheet8-PowerTDFN
39,414 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
N-Channel 25 V 22A (Ta), 84A (Tc) 2.8W (Ta), 78W (Tc) Surface Mount PG-TDSON-8-6
BSC032NE2LSATMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | N-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 25 V |
| Current - Continuous Drain (Id) @ 25°C | 22A (Ta), 84A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 4.5V, 10V |
| Rds On (Max) @ Id, Vgs | 3.2mOhm @ 30A, 10V |
| Vgs(th) (Max) @ Id | 2V @ 250µA |
| Vgs (Max) | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds | 1200 pF @ 12 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.8W (Ta), 78W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-6 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC032 |
| Gate Charge (Qg) (Max) @ Vgs | 16 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
 |
 |
 |
| Part Number | BSC032N03S | BSC032N03SG | BSC032N04LSATMA1 | BS170PSTOA |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Diodes Incorporated |
| RoHS Status | RoHS non-compliant | ROHS3 Compliant | ROHS3 Compliant | |
| Description | MOSFET N-CH 30V 23A/100A TDSON | MOSFET N-CH 30V 23A/100A TDSON | MOSFET N-CH 40V 21A/98A TDSON | MOSFET N-CH 60V 270MA E-LINE |
| Series | OptiMOS™ | OptiMOS™ | OptiMOS™ | - |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR) |
