BSC030P03NS3GAUMA1
lmages are for reference only.BSC030P03NS3GAUMA1
MOSFET P-CH 30V 25.4/100A 8TDSON
Datasheet8-PowerTDFN
17,645 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
P-Channel 30 V 25.4A (Ta), 100A (Tc) 2.5W (Ta), 125W (Tc) Surface Mount PG-TDSON-8-1
BSC030P03NS3GAUMA1
| Category | Discrete Semiconductor Products - Transistors - FETs-MOSFETs |
| Manufacturer | Infineon Technologies |
| Series | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) |
| RoHS Status | ROHS3 Compliant |
| FET Type | P-Channel |
| Technology | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss) | 30 V |
| Current - Continuous Drain (Id) @ 25°C | 25.4A (Ta), 100A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On) | 6V, 10V |
| Rds On (Max) @ Id, Vgs | 3mOhm @ 50A, 10V |
| Vgs(th) (Max) @ Id | 3.1V @ 345µA |
| Vgs (Max) | ±25V |
| Input Capacitance (Ciss) (Max) @ Vds | 14000 pF @ 15 V |
| FET Feature | - |
| Power Dissipation (Max) | 2.5W (Ta), 125W (Tc) |
| Operating Temperature | -55°C ~ 150°C (TJ) |
| Mounting Type | Surface Mount |
| Supplier Device Package | PG-TDSON-8-1 |
| Package / Case | 8-PowerTDFN |
| Base Product Number | BSC030 |
| Gate Charge (Qg) (Max) @ Vgs | 186 nC @ 10 V |
| Grade | - |
| Qualification | - |
| Product Attribute |  |
|
 |
|

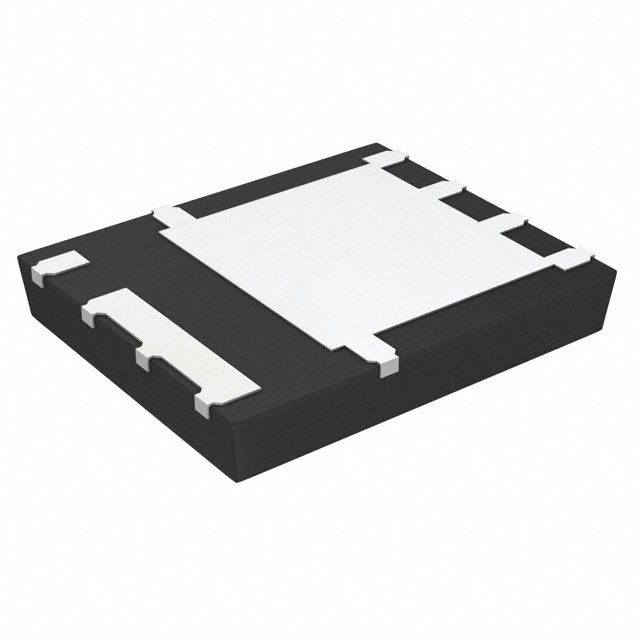

| Part Number | BSC004NE2LS5ATMA1 | BSC005N03LS5ATMA1 | BSC005N03LS5IATMA1 | BSC007N04LS6ATMA1 |
| Manufacturer | Infineon Technologies | Infineon Technologies | Infineon Technologies | Infineon Technologies |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | TRENCH <= 40V | TRENCH <= 40V | TRENCH <= 40V | MOSFET N-CH 40V 100A TDSON-8-6 |
| Series | OptiMOS™ | OptiMOS™ | - | OptiMOS™ |
| Packaging | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) | Tape & Reel (TR)-->Cut Tape (CT) |
