Product CatalogPart Number
CKSR 25-NP/SP3 T
Manufacturer
LEM USA Inc.Description
SENSOR CURRENT
Datasheet
DatasheetPackage
Module
In Stock
55,539 piece(s)
Unit Price
Please Contact Us
Lead Time
Can Ship Immediately
Request for Quotation
CKSR 25-NP/SP3 T
CKSR 25-NP/SP3 T
lmages are for reference only.Payment Methods
Delivery Services
Current Sensor 25A 1 Channel Flux Gate, Closed Loop Bidirectional Module
Quick Inquiry
CKSR 25-NP/SP3 T
Specifications
| Category | Sensors, Transducers - Current Sensors - |
| Manufacturer | LEM USA Inc. |
| Series | CKSR |
| Packaging | Bulk |
| RoHS Status | |
| For Measuring | AC/DC |
| Sensor Type | Flux Gate, Closed Loop |
| Current - Sensing | 25A |
| Number of Channels | 1 |
| Output | Voltage |
| Sensitivity | 25mV/A |
| Frequency | DC ~ 300kHz |
| Linearity | ±0.1% |
| Accuracy | - |
| Voltage - Supply | 4.75V ~ 5.25V |
| Response Time | 300ns |
| Current - Supply (Max) | - |
| Operating Temperature | -40°C ~ 105°C |
| Polarization | Bidirectional |
| Mounting Type | Through Hole |
| Package / Case | Module |
| Supplier Device Package | - |
| Base Product Number | - |
| Grade | - |
| Qualification | - |
Parts with Similar Specifications
| Product Attribute |  |
|
 |
 |

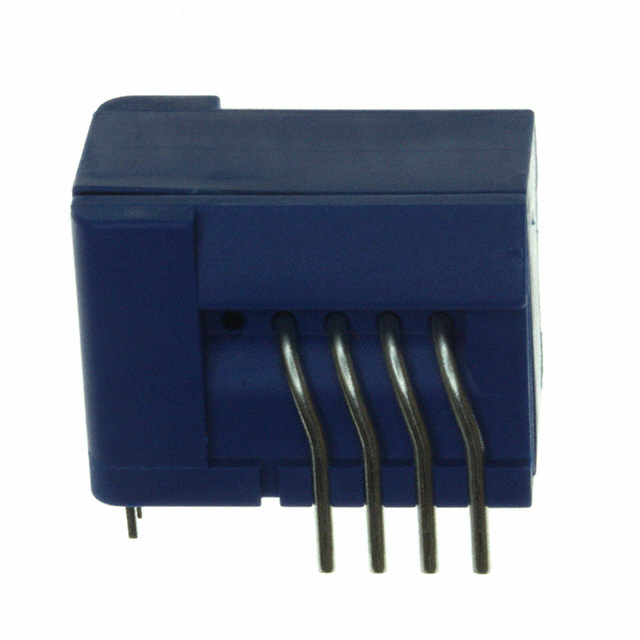

| Part Number | CKSR 25-NP | CKSR 25-NP/SP3 | CSNF151-001 | CSLA1GF |
| Manufacturer | LEM USA Inc. | LEM USA Inc. | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| RoHS Status | RoHS Compliant | RoHS Compliant | RoHS Compliant | |
| Description | SENSOR CURRENT FLUX 25A AC/DC | TRANSDUCER | SENSOR CURRENT HALL 180A AC/DC | SENSOR CURRENT HALL 100A AC/DC |
| Series | LEM USA Inc. | LEM USA Inc. | Honeywell Sensing and Productivity Solutions | Honeywell Sensing and Productivity Solutions |
| Packaging | Tray | Bulk | Bulk | Bulk |
