CVCO55CXT-6250-6250
lmages are for reference only.CVCO55CXT-6250-6250
VCO 6250MHZ 0.5-4.5V 12.7X12.7MM
Datasheet16-QFN, Variant
35,017 piece(s)
Please Contact Us
Can Ship Immediately
Request for Quotation
Payment Methods
Delivery Services
6250MHz Center Frequency 0.5 V ~ 4.5 V Voltage Controlled Oscillator 4 ±3 dBm -30 2nd Harmonic Typ (dBc)
CVCO55CXT-6250-6250
| Category | Crystals, Oscillators, Resonators - VCOs Voltage Controlled Oscillators - |
| Manufacturer | Crystek Corporation |
| Series | CVCO55CXT |
| Packaging | Strip |
| RoHS Status | ROHS3 Compliant |
| Frequency Range | - |
| Frequency - Center | 6250MHz |
| Voltage - Supply | 8V |
| Tuning Voltage (VDC) | 0.5 V ~ 4.5 V |
| 2nd Harmonic, Typ (dBc) | -30 |
| Icc Max | 35mA |
| Pushing (MHz/V) | 20 |
| Power (dBm) | 4 ±3 |
| Phase Noise Typ (dBc/Hz) | -93 |
| Operating Temperature | -40°C ~ 85°C |
| Package / Case | 16-QFN, Variant |
| Size / Dimension | 0.500" L x 0.500" W (12.70mm x 12.70mm) |
| Height | 0.220" (5.59mm) |
| Base Product Number | - |
| Product Attribute | |
|
 |
|

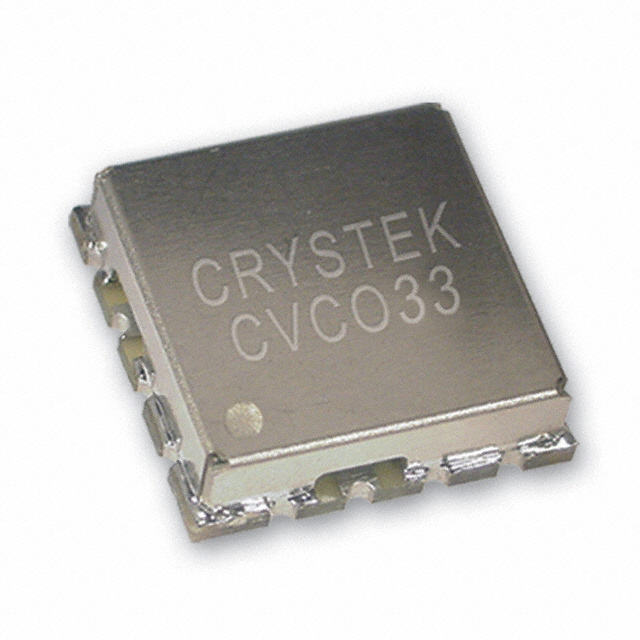

| Part Number | CVCO55CXT-6250-6250 | CVCO55CXT-6250-6250 | CVCO33BE-2400-2500 | CVCO33BE-2400-2500 |
| Manufacturer | Crystek Corporation | Crystek Corporation | Crystek Corporation | Crystek Corporation |
| RoHS Status | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant | ROHS3 Compliant |
| Description | VCO 6250MHZ 0.5-4.5V 12.7X12.7MM | VCO 6250MHZ 0.5-4.5V 12.7X12.7MM | VCO 2450MHZ 0-3V 7.62MMX7.62MM | VCO 2450MHZ 0-3V 7.62MMX7.62MM |
| Series | CVCO55CXT | CVCO55CXT | CVCO33 | CVCO33 |
| Packaging | Strip | Strip | Strip | Strip |
